Adders

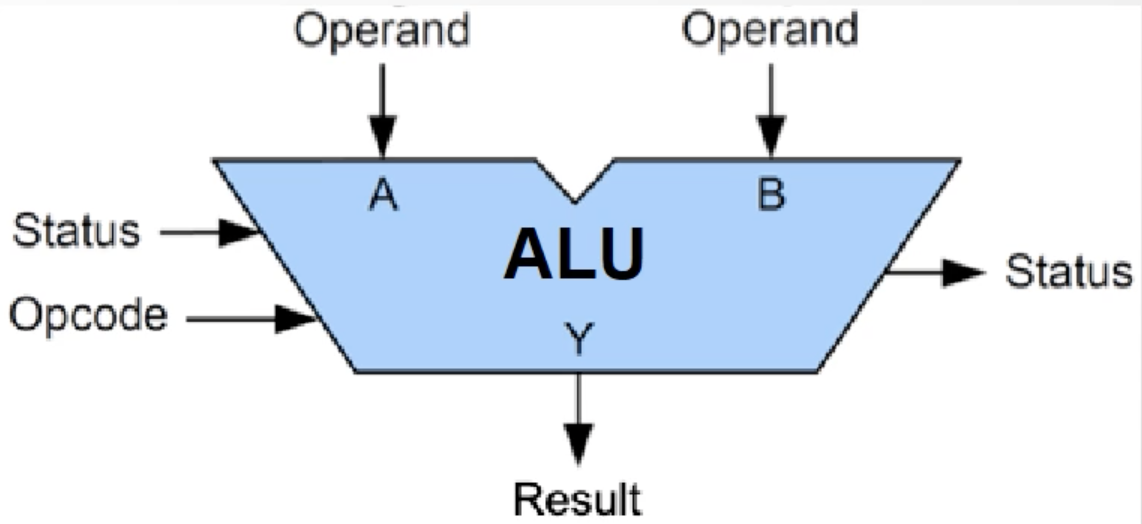

ALU - Is a subsystem that carries out operations on operands.

Half Adder

All operations are based upon addition.

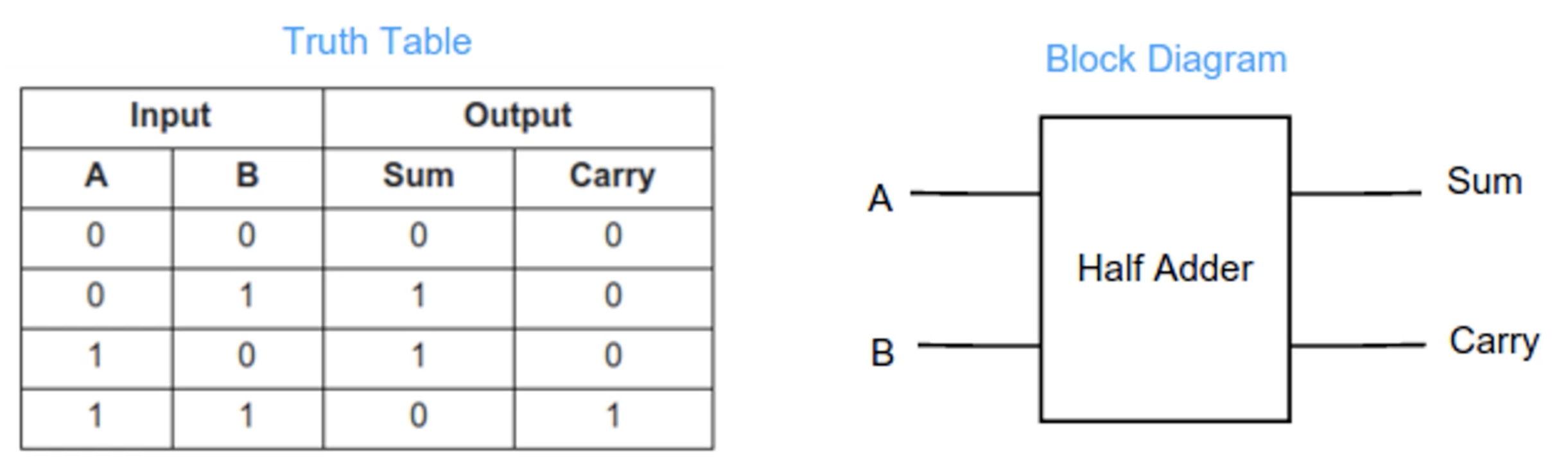

Truth table

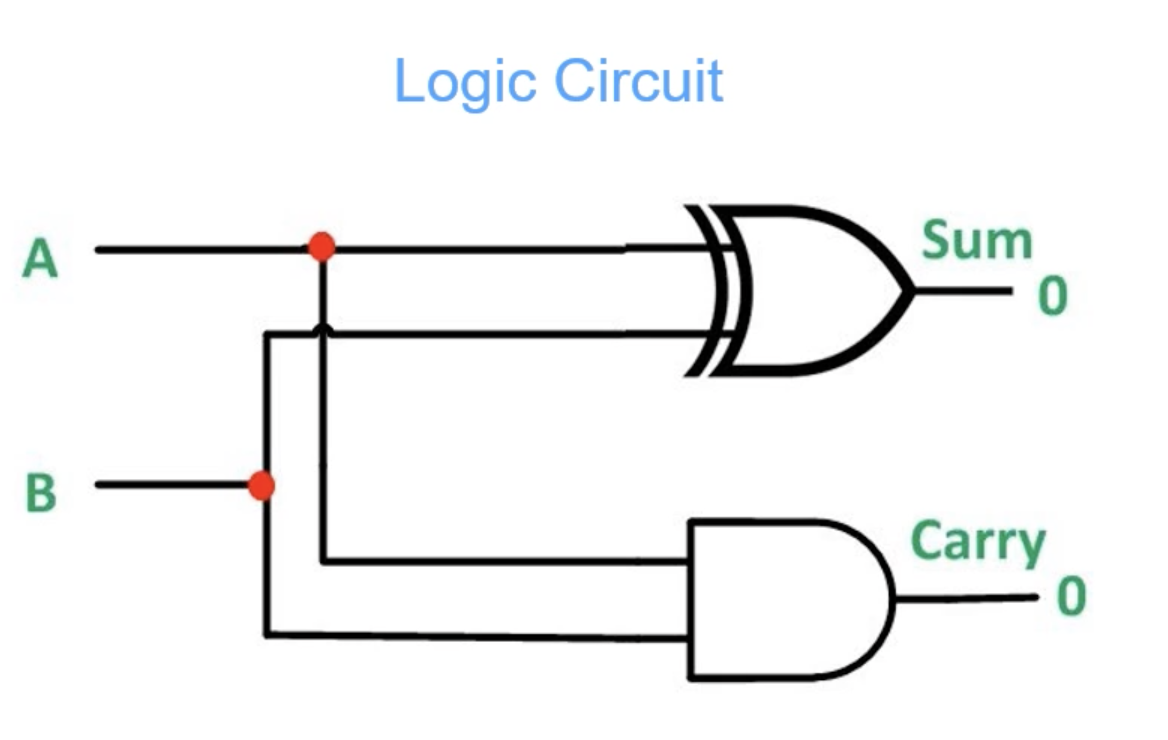

Logic

Full Adder

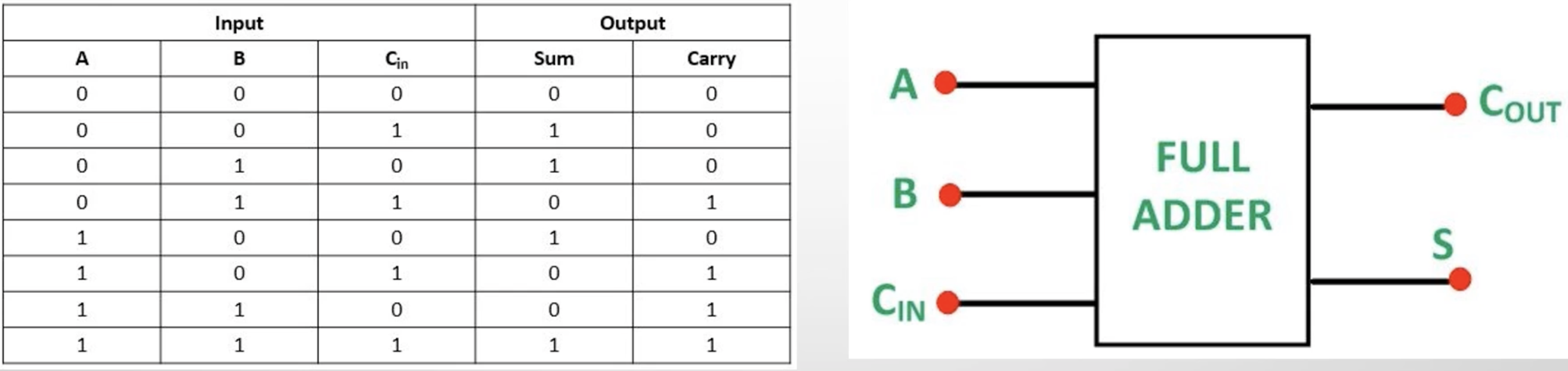

Truth table

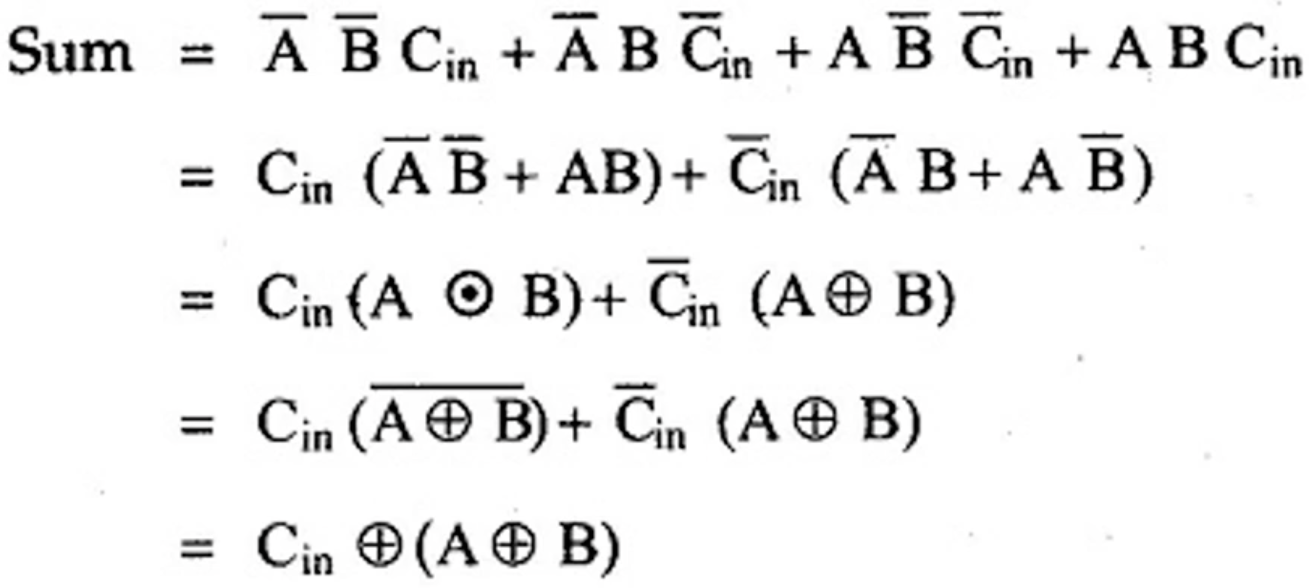

equivalence equation

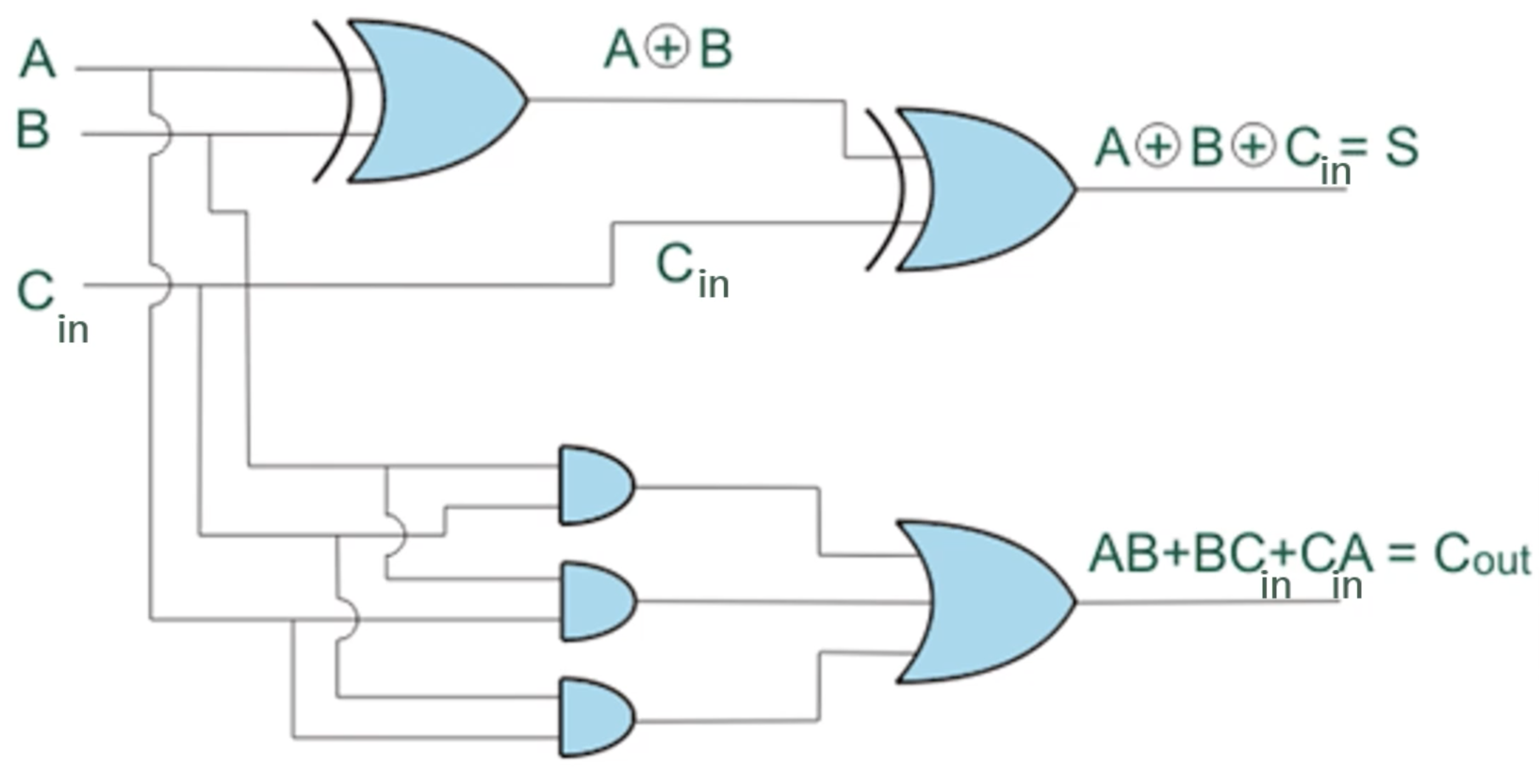

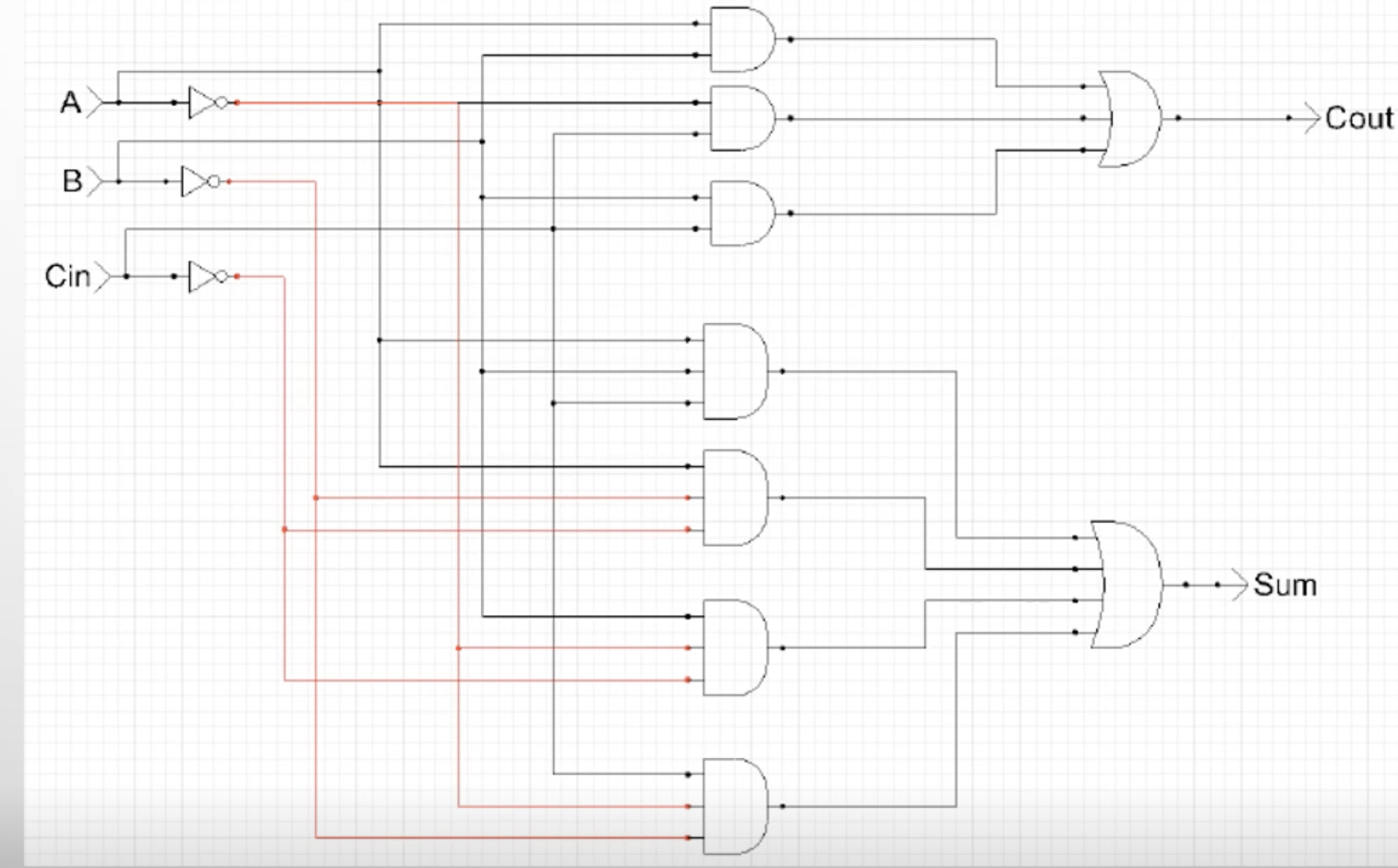

Logic

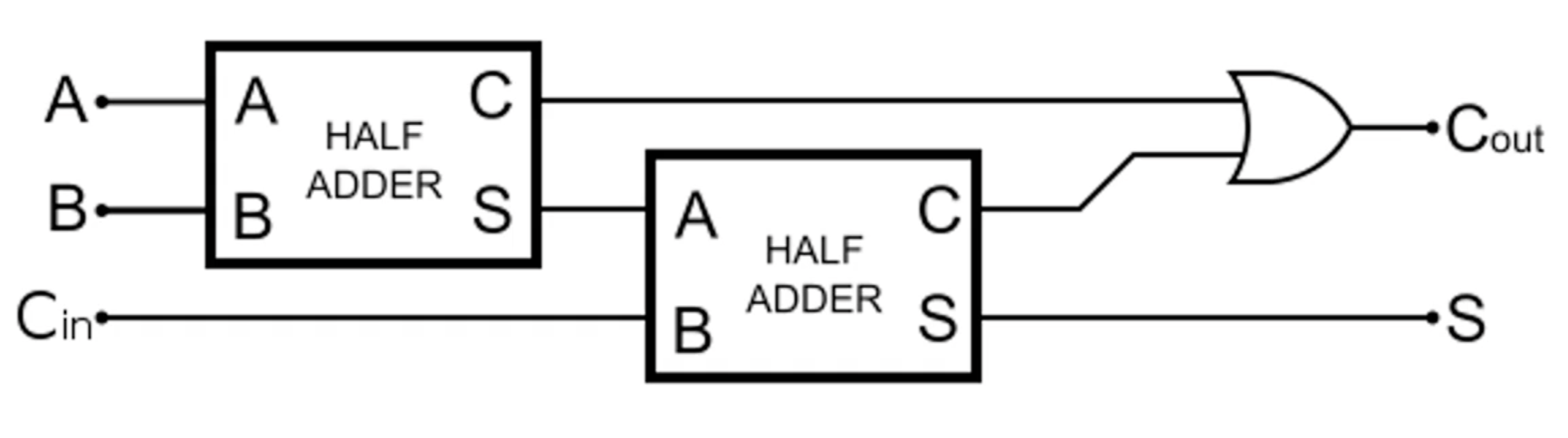

Alternative logic

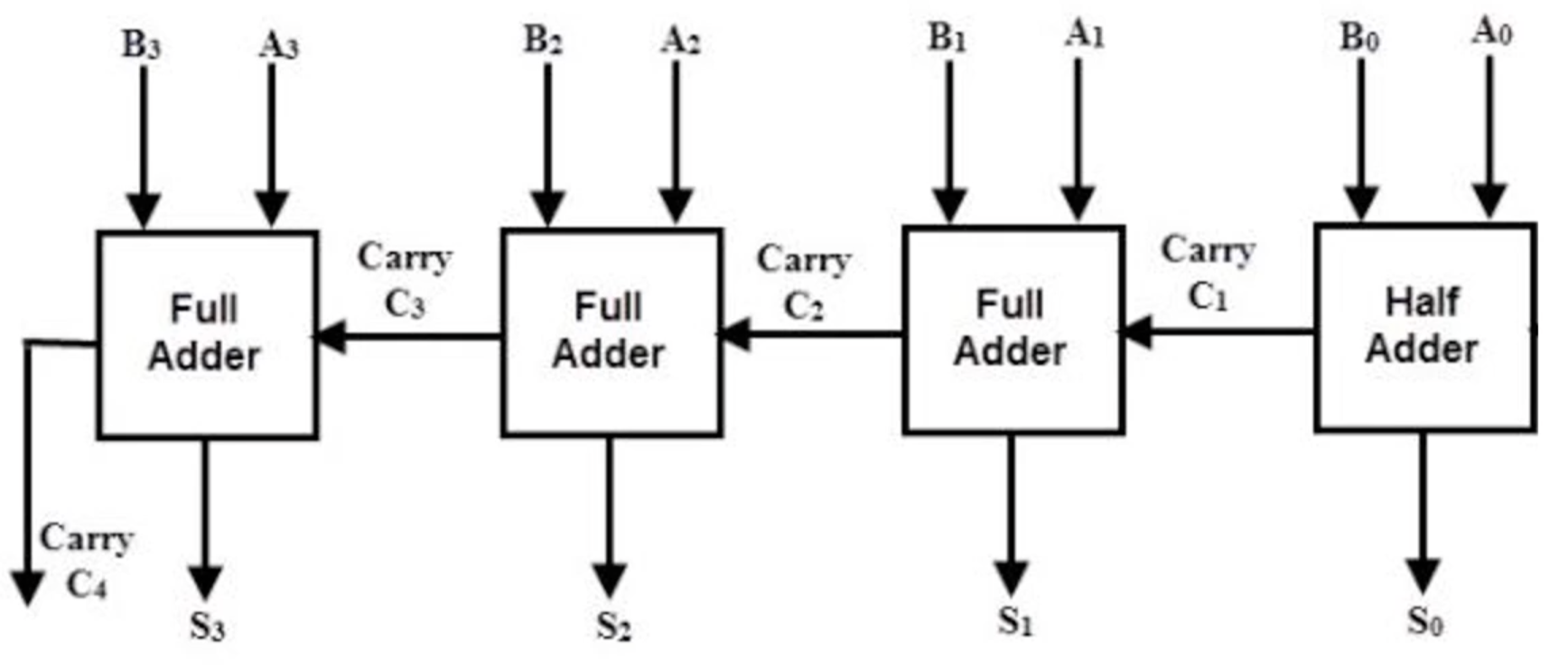

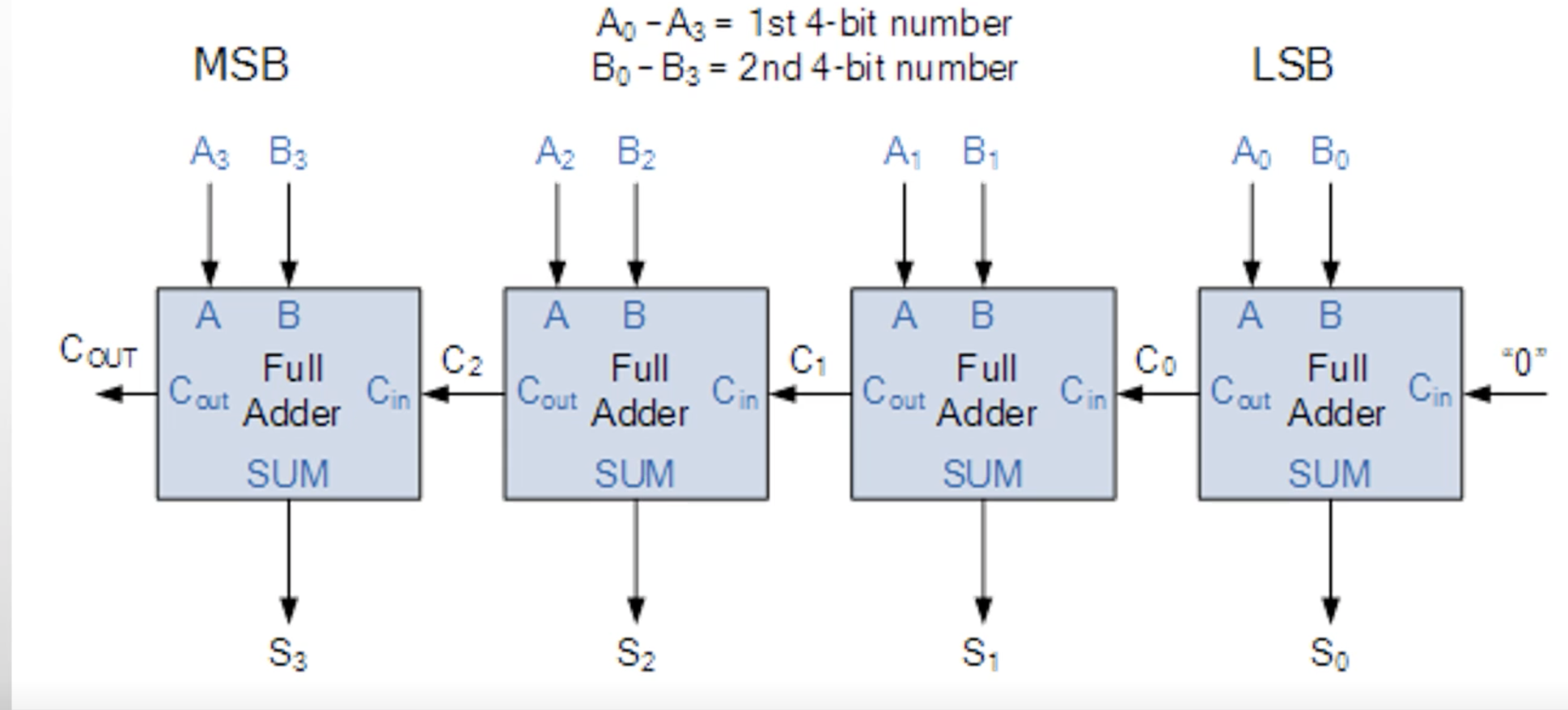

4-bit addition with ripple adder cascade methods

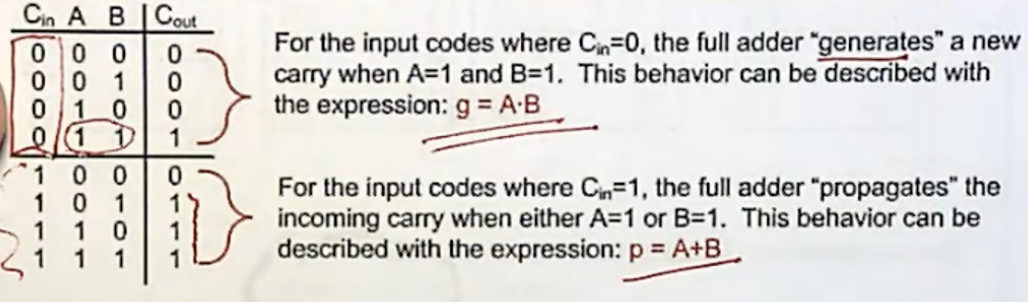

Carry look ahead adder

Note: ripple adder cascades are bad because the carry bit must ripple though each adder

This can be solved with a carry look ahead adder

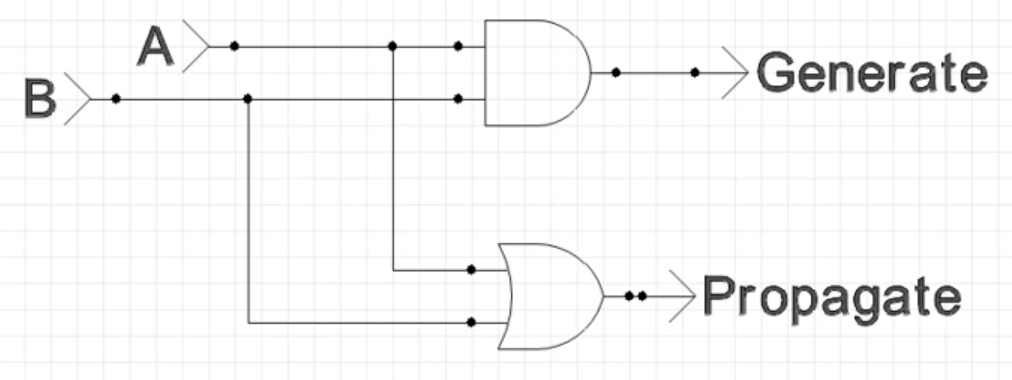

Logic

Why???

• They are only any use in smaller adder cascades

Implementation

To get the negative of a twos compliment binary number you must:

1. Get the ones compliment (bit-wise inversion)

2. Add one

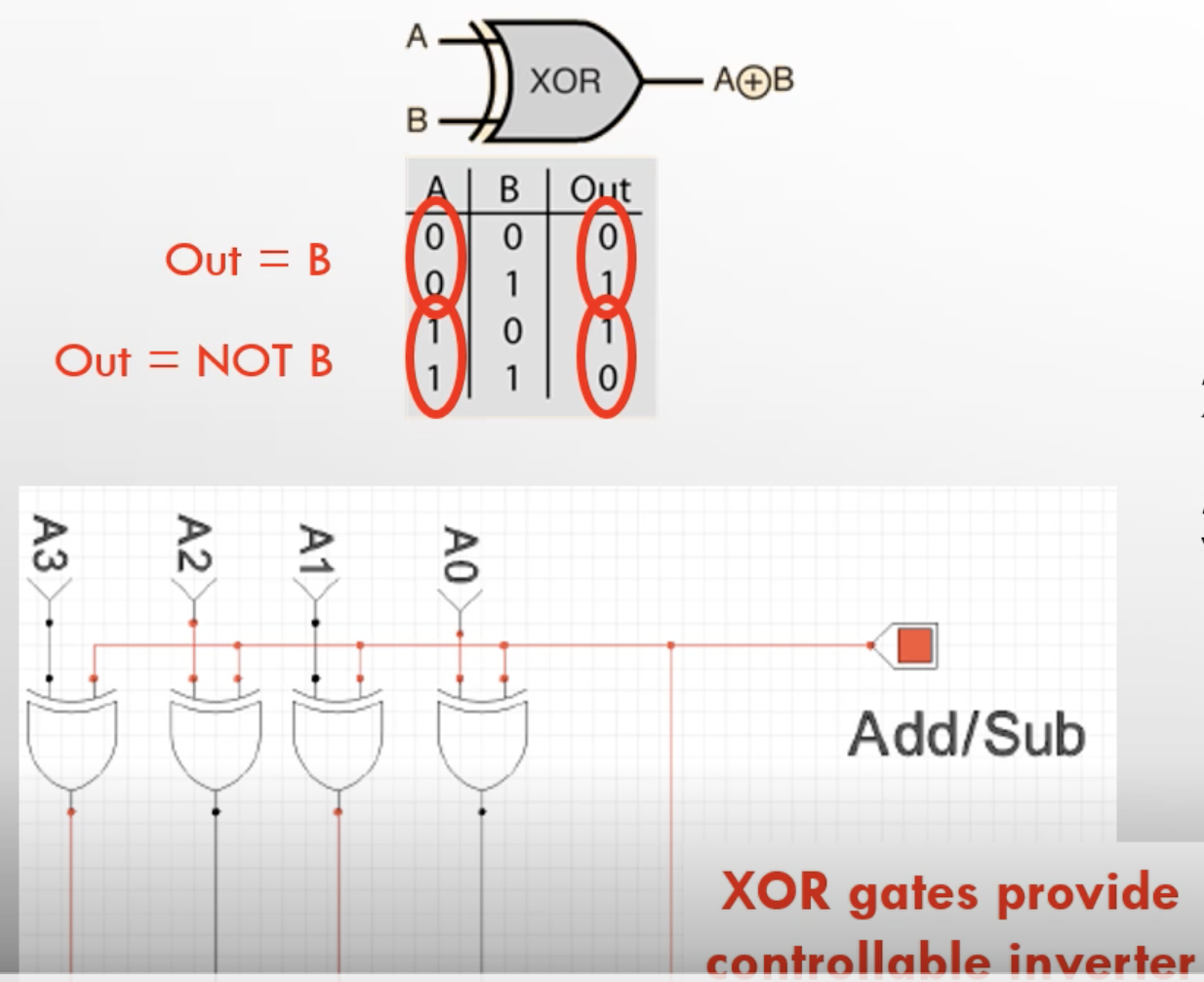

Bit-wise inversion

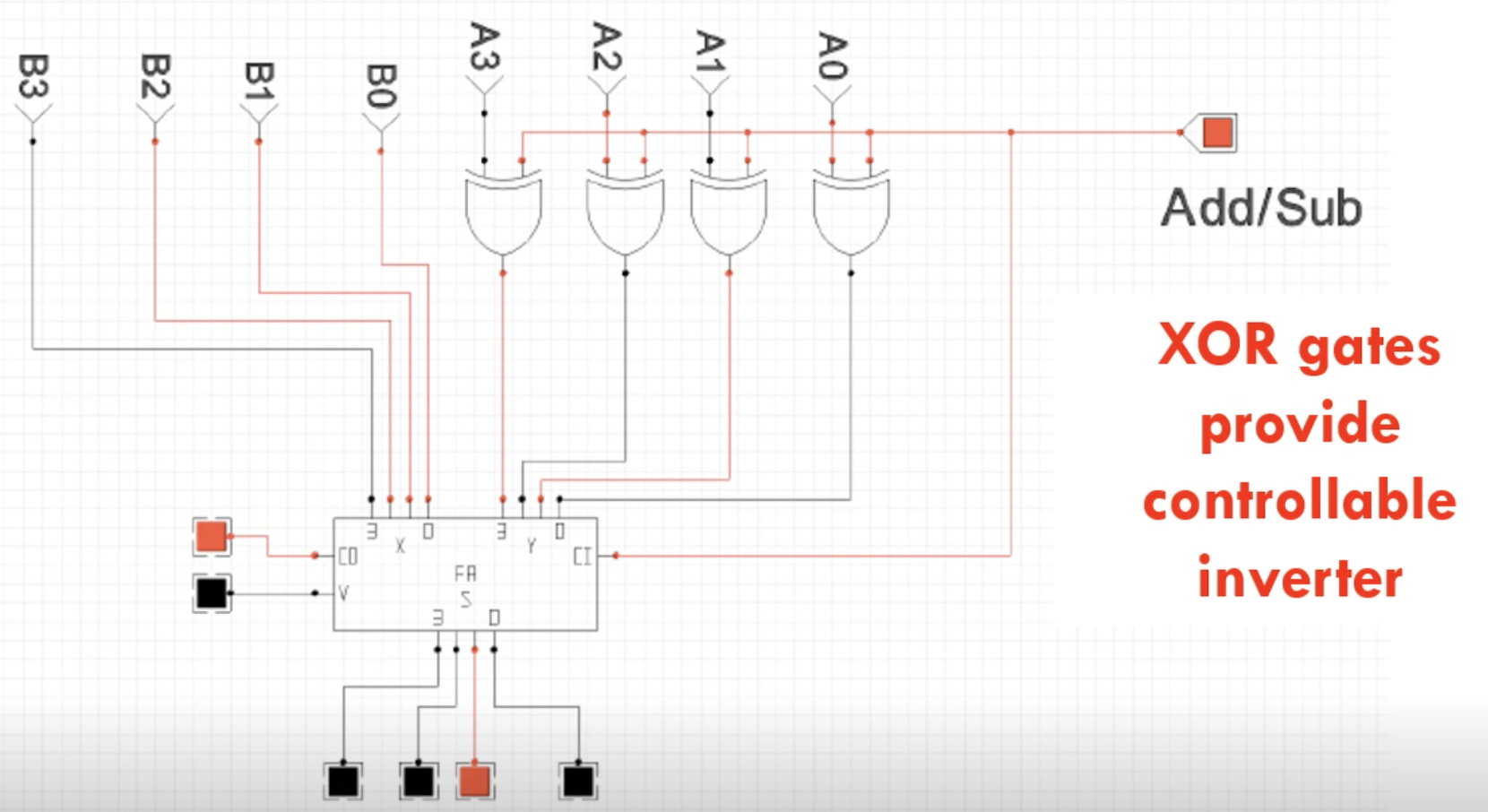

Adder/Subtraction

Note: when negative is being entered carry in is set to 1, thus adding 1

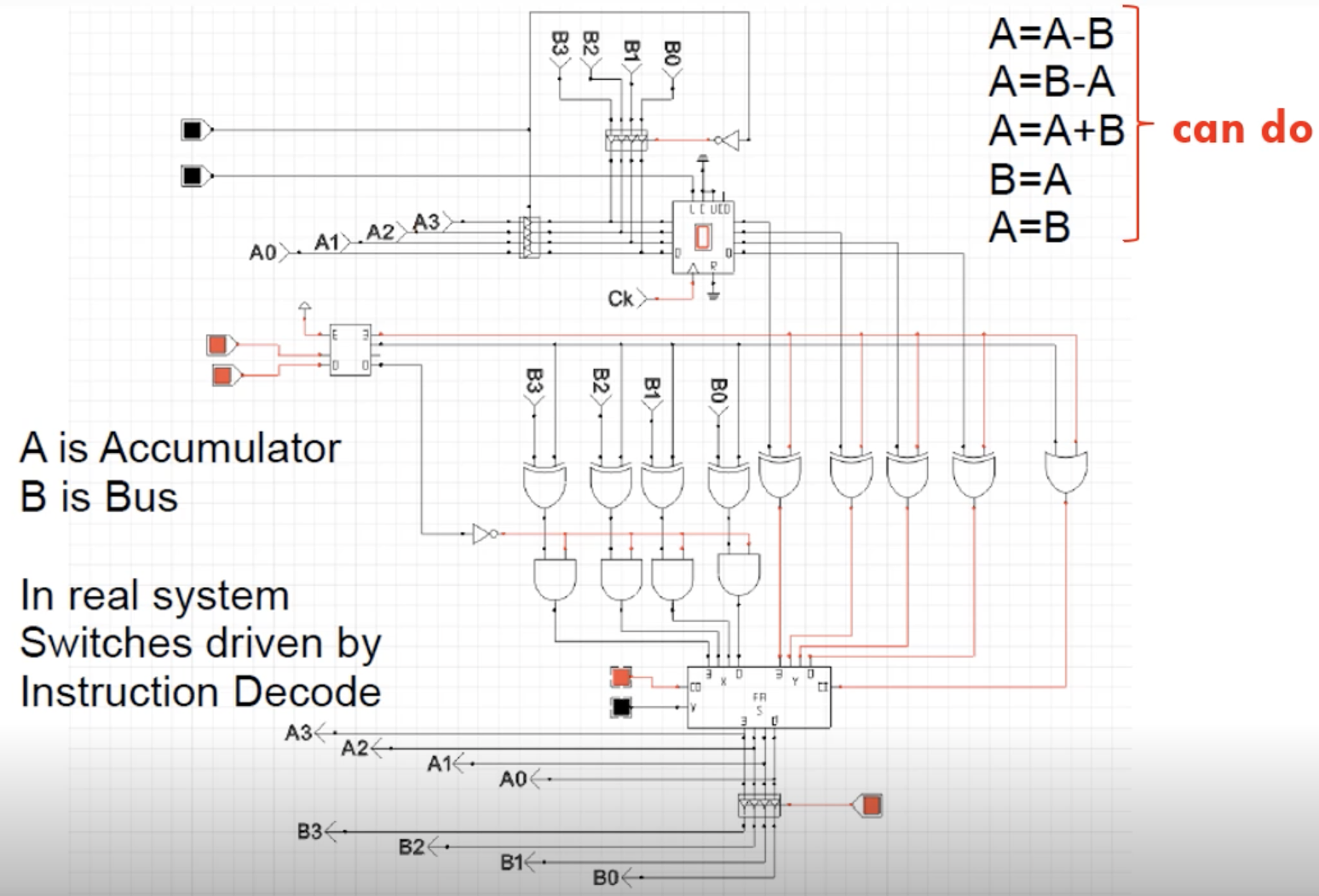

Bringing it all together (Accumulator circuit)
