Part 1 Database Design

Mapping class diagrams to relational tables.

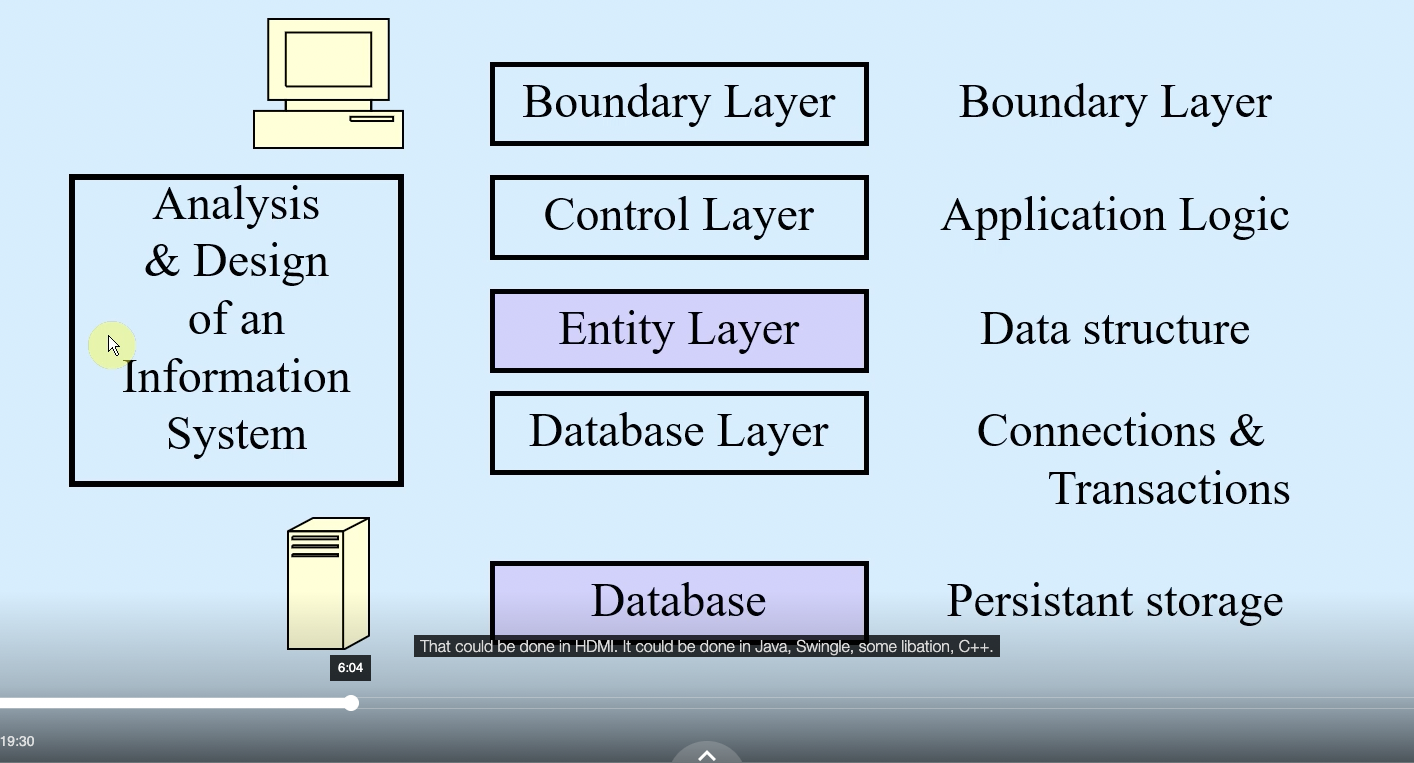

We don’t need to concern ourselves with the top two layers

Entity layer (data model) - attributes and the operations, contains the metadata, made from the class diagrams

database layer (data access / behaviour model) - the bit that reads and writes the data using operations, using transactions, made from the sequence diagram

database - persistent storage using attributes in tables

Part 2 Class Diagrams to Tables

Persistent classes - needed after application is closed

Transient classes - are removed when the application is closed

Things to worry about:

• Normalisation - how are complex things going to be stored like vectors

• Mapping - mapping metadata from OO to RDB

Mapping

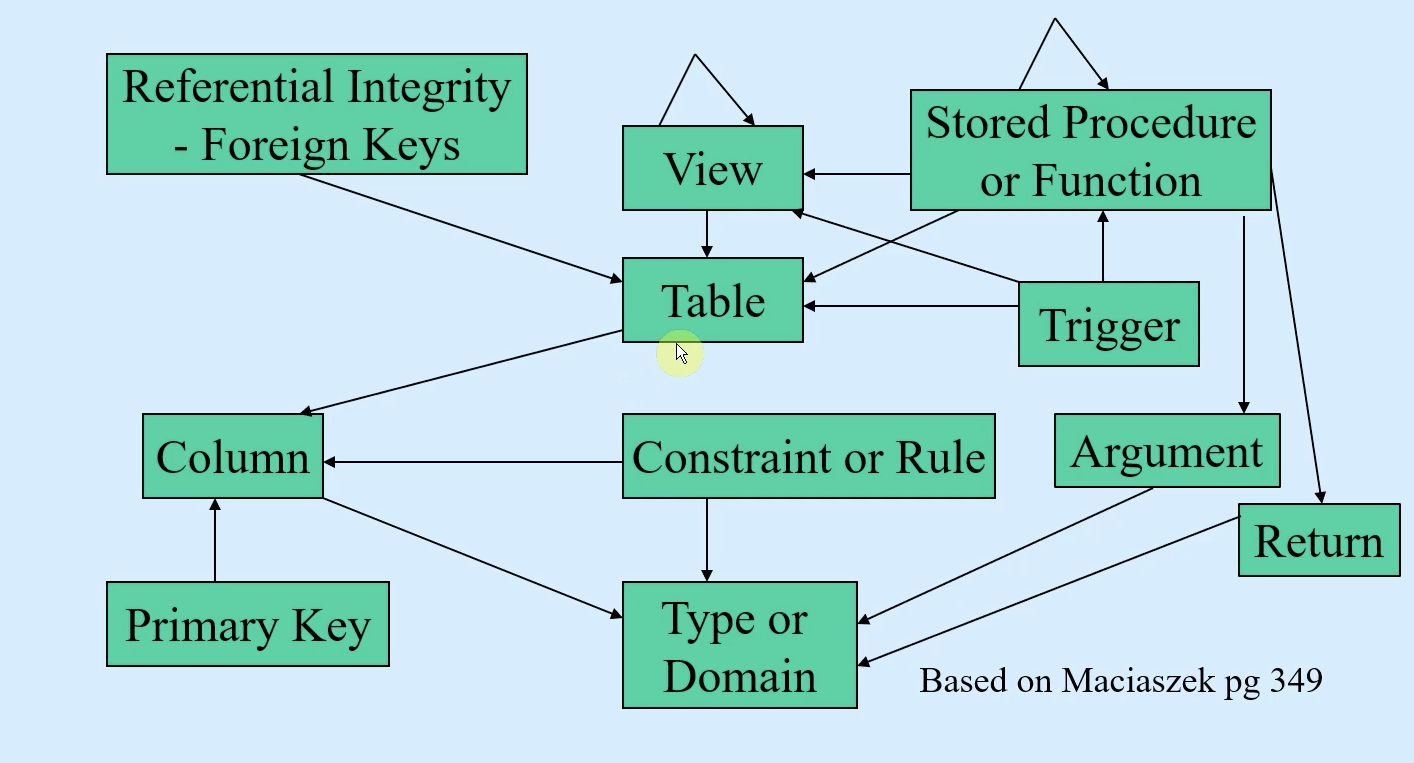

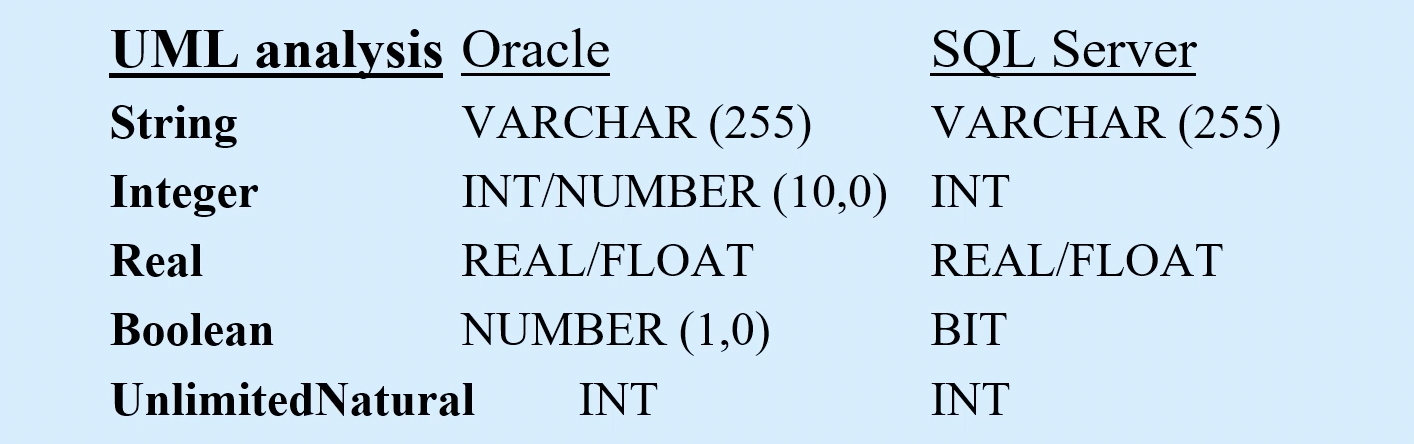

Metadata in a database

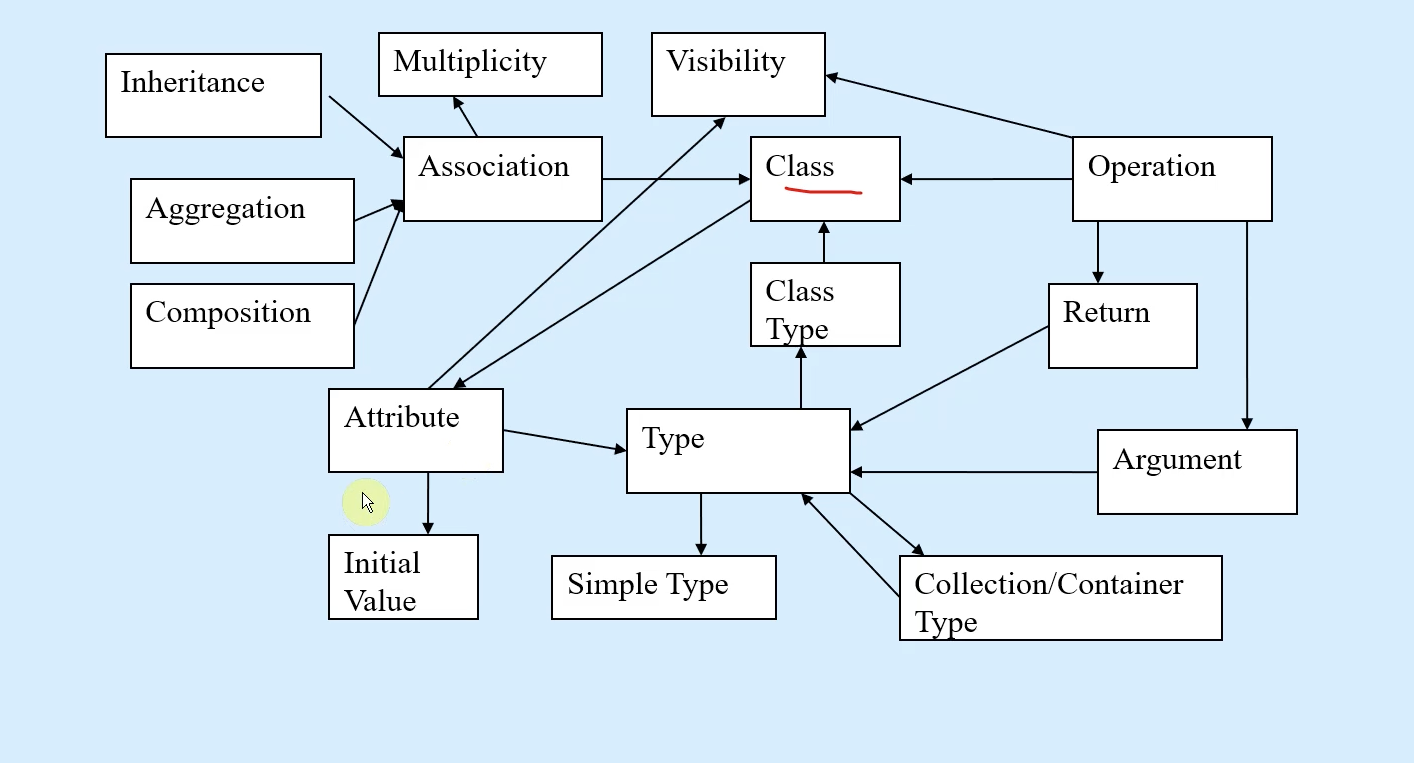

Metadata for classes

Typically...

Classes = tables

Attributes = columns

Part 3 Mapping Classes to Tables

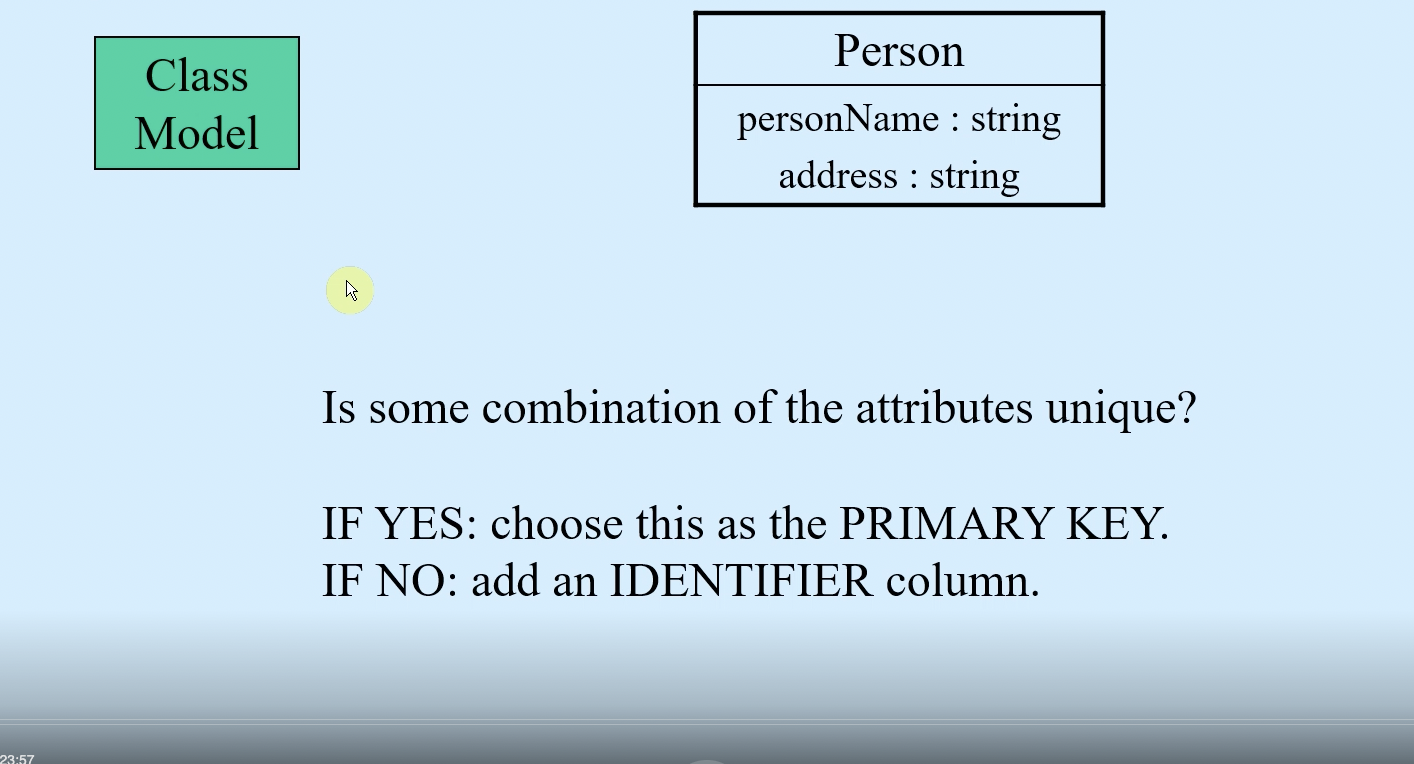

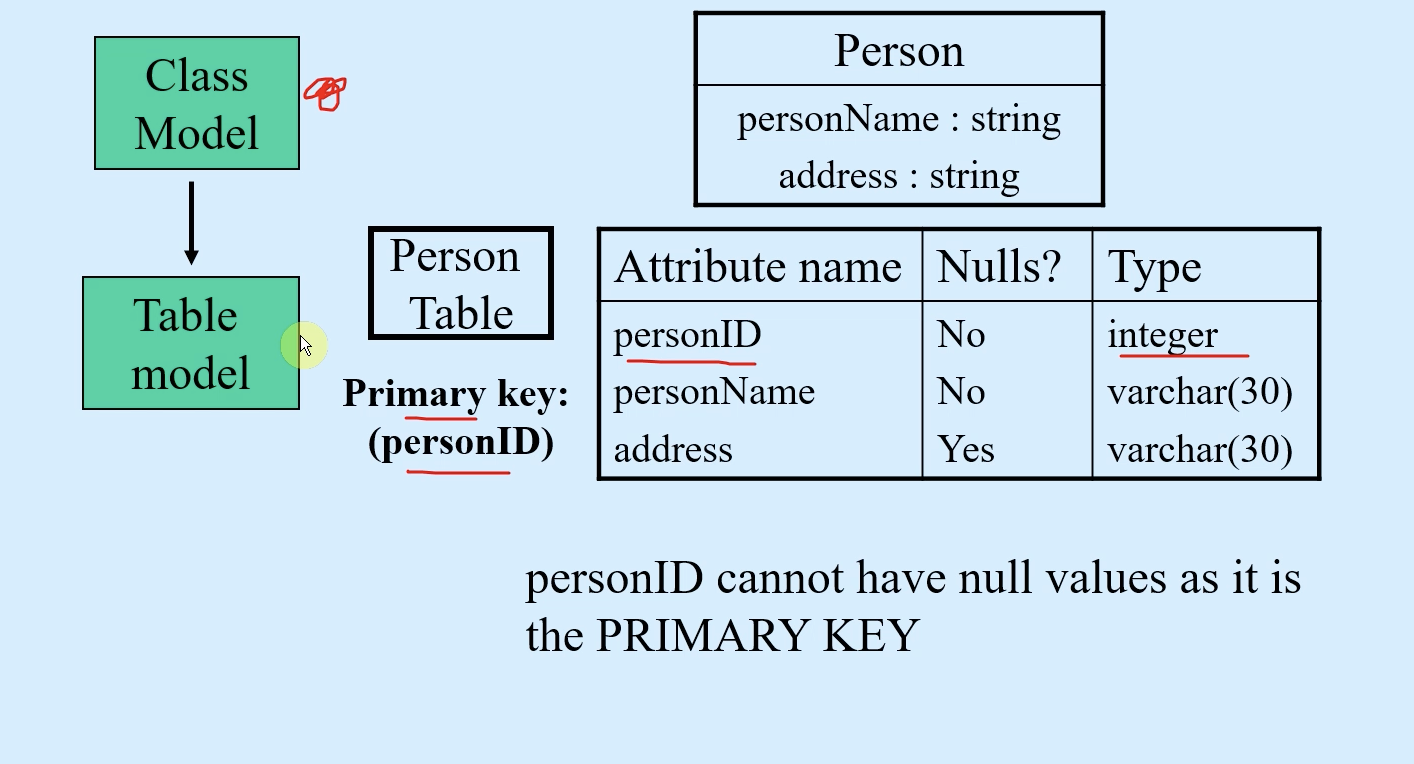

Step 1 - ATOMIC

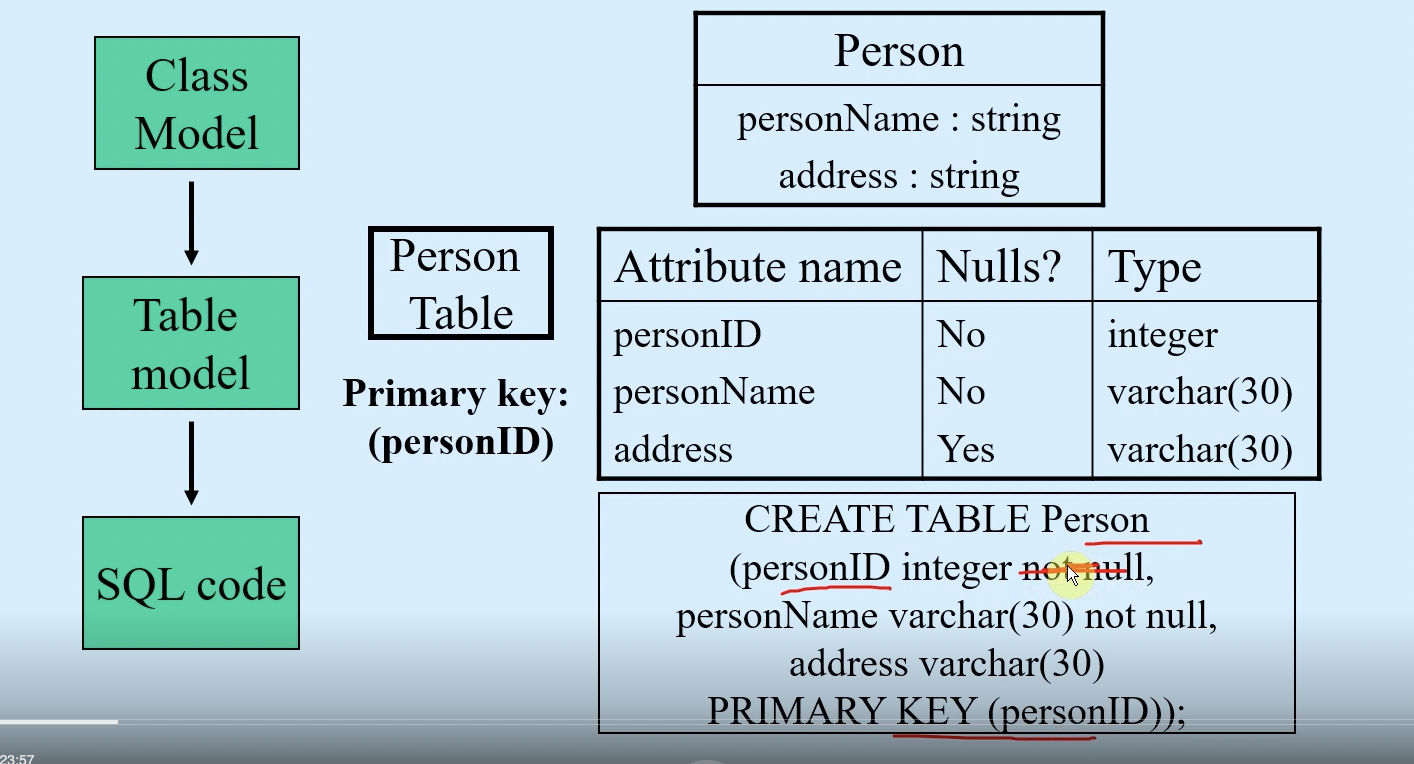

Step 2

Step 3

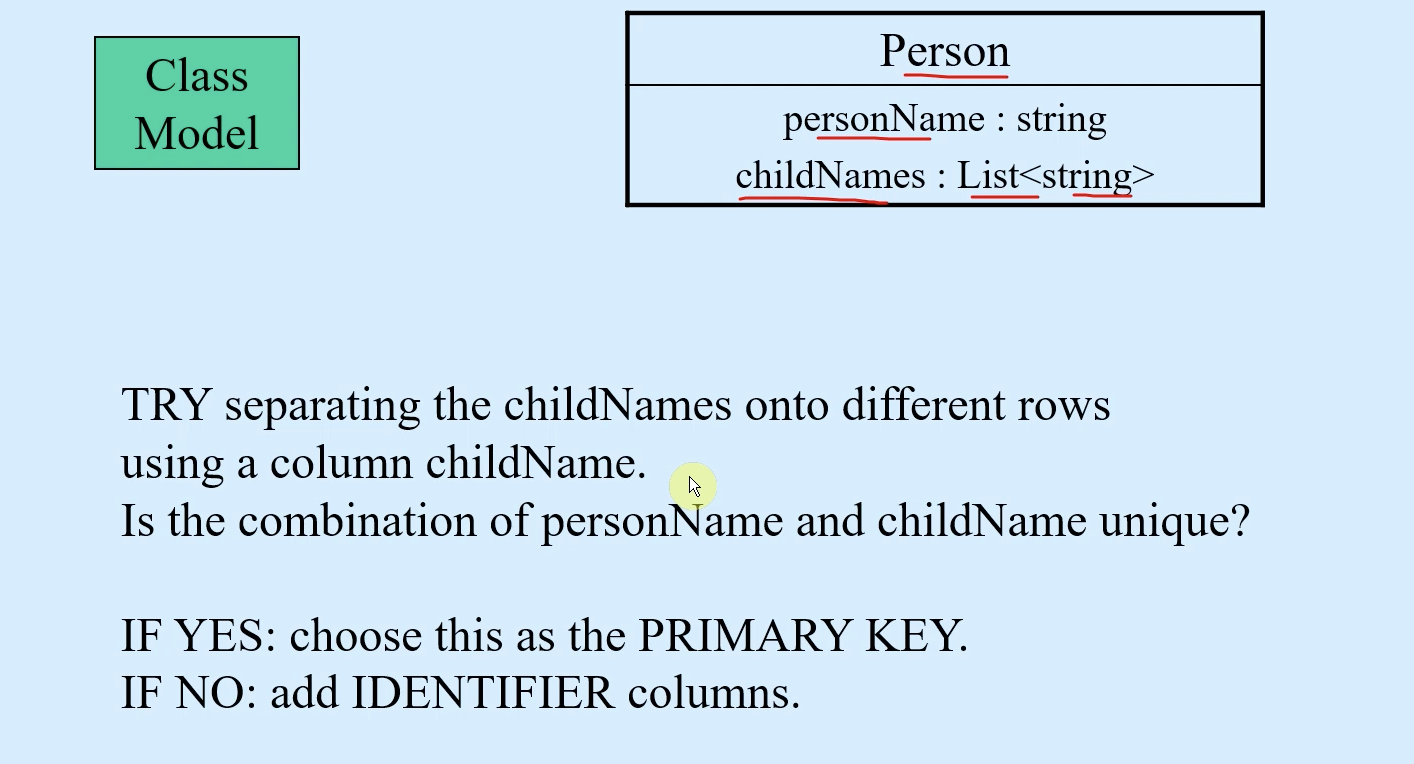

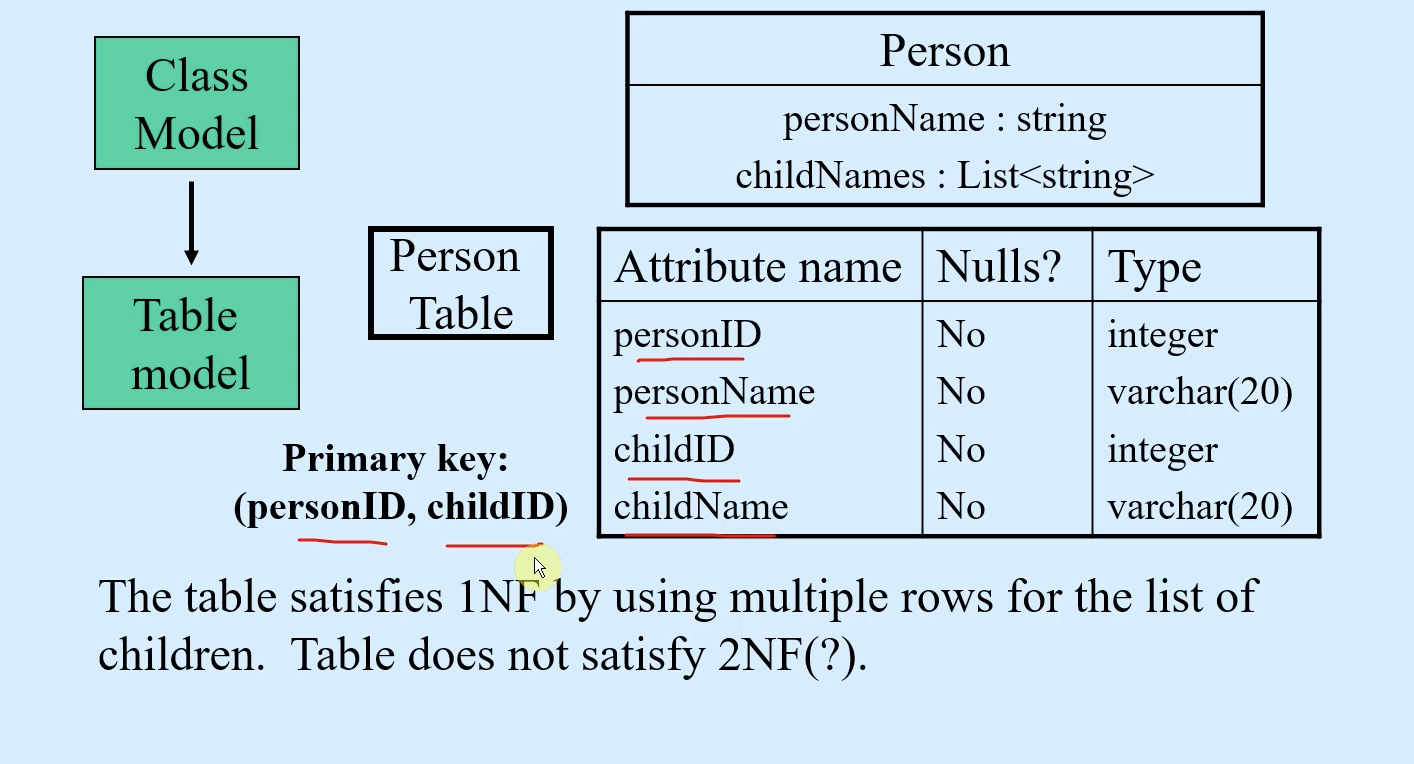

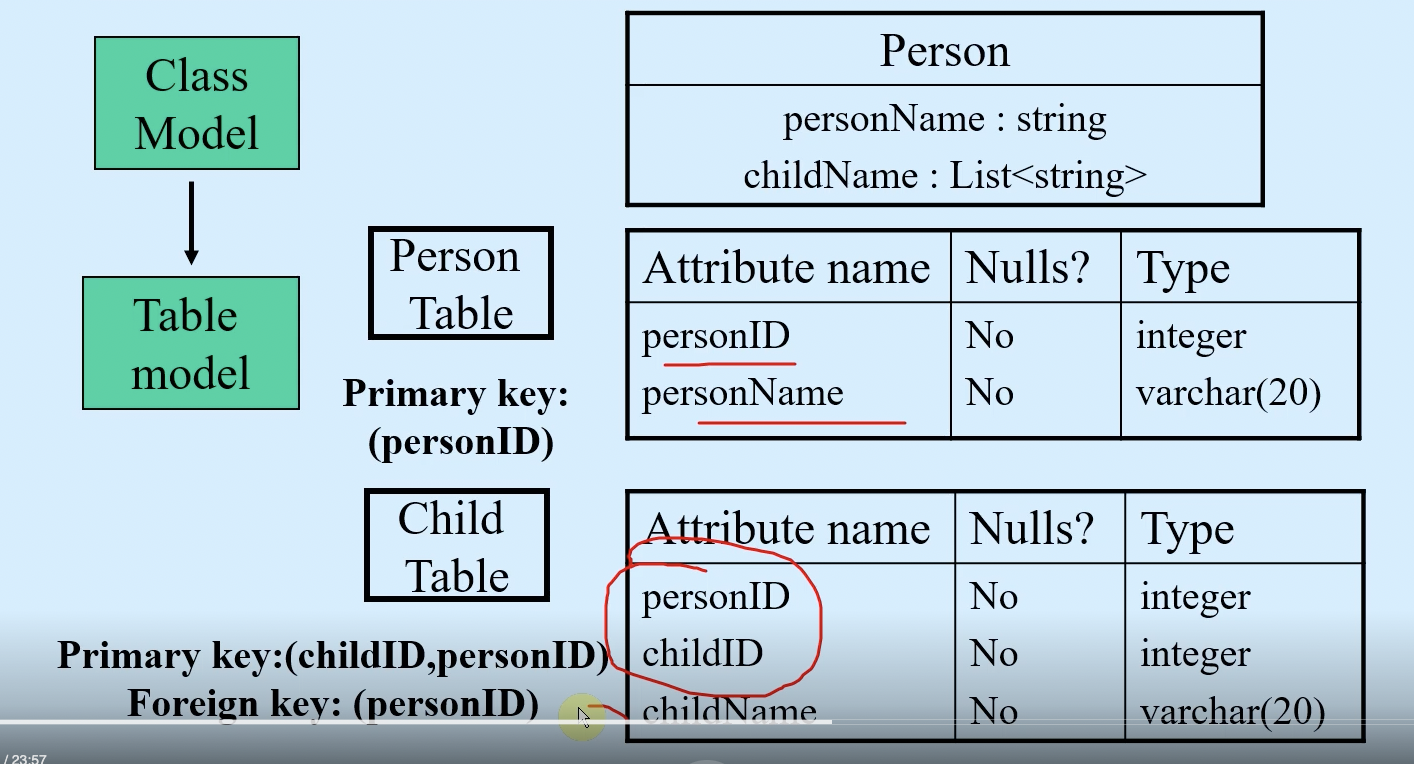

Step 1 - Non Atomic

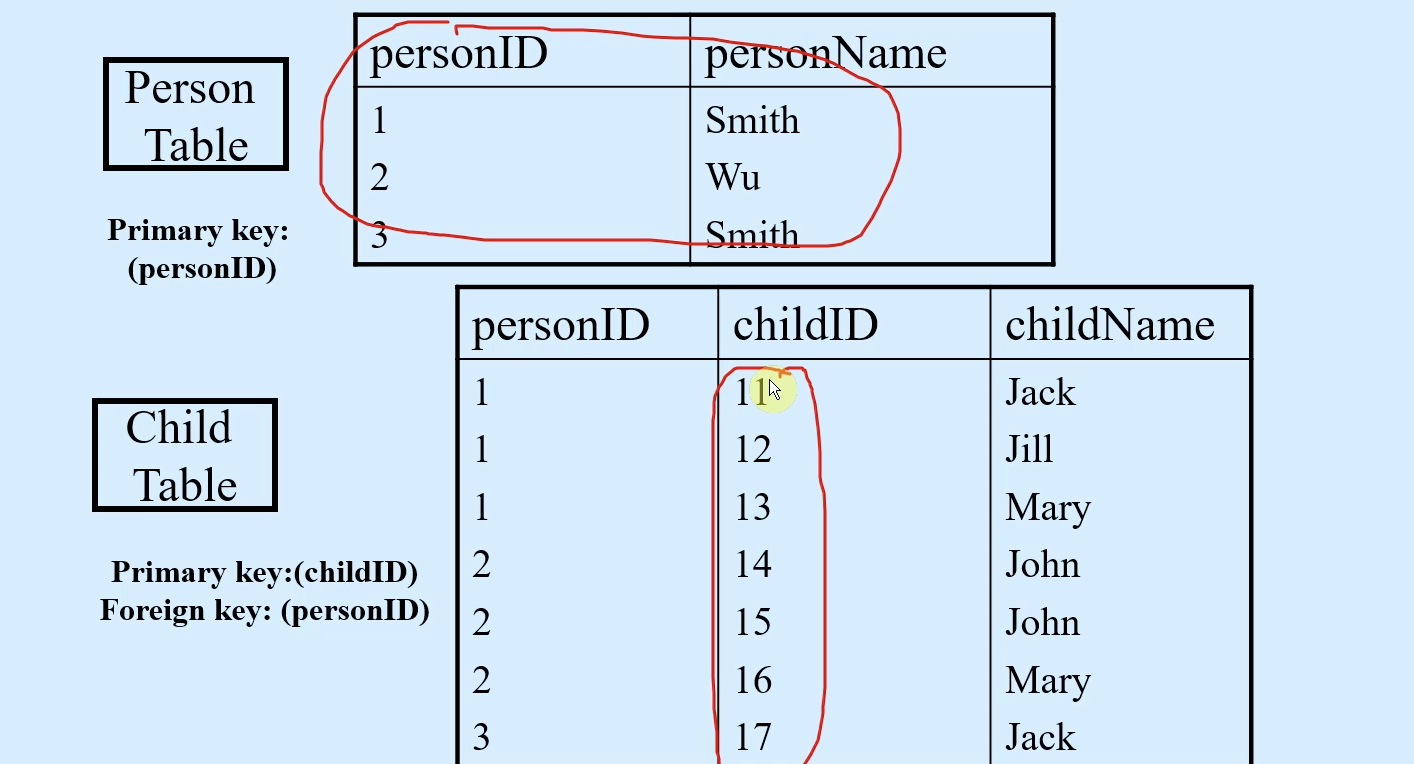

Step 2

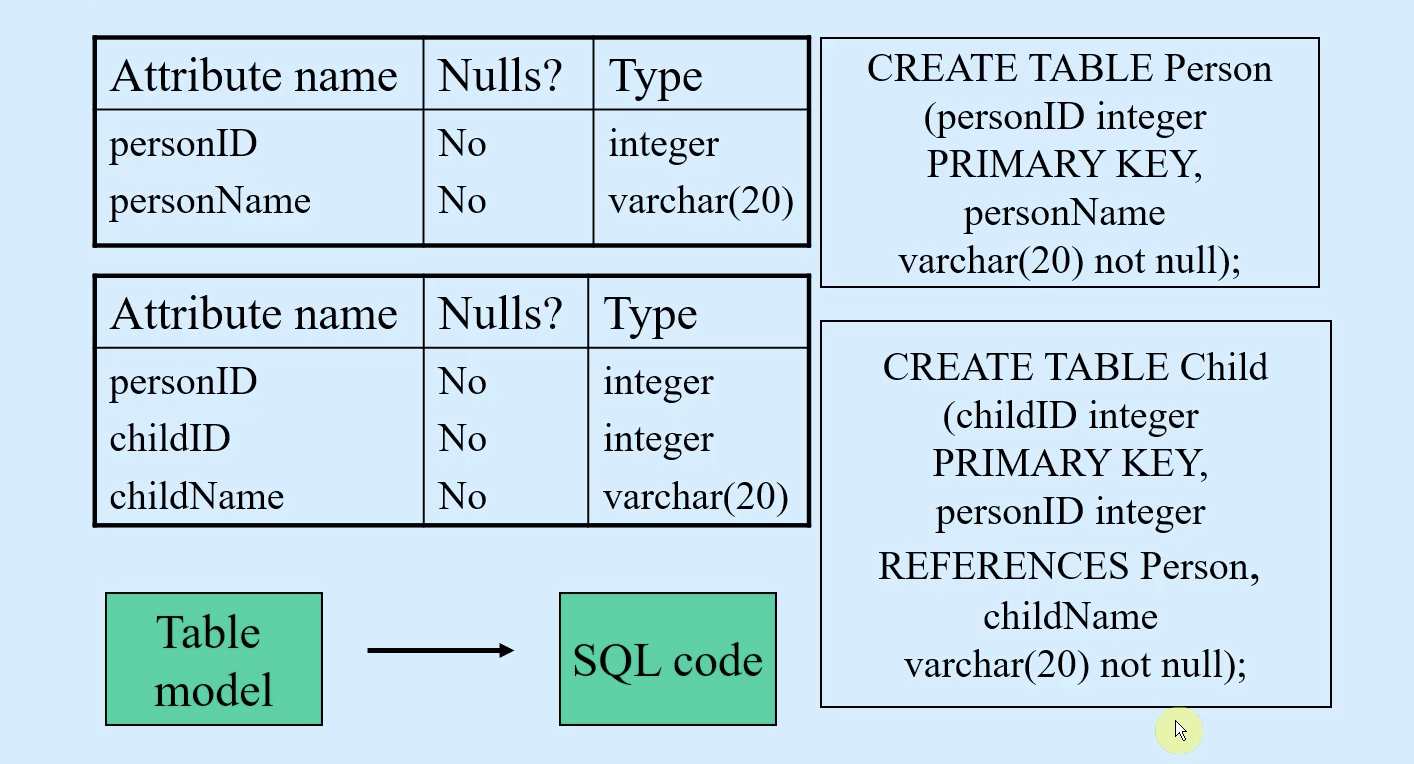

Step 3

Step 4

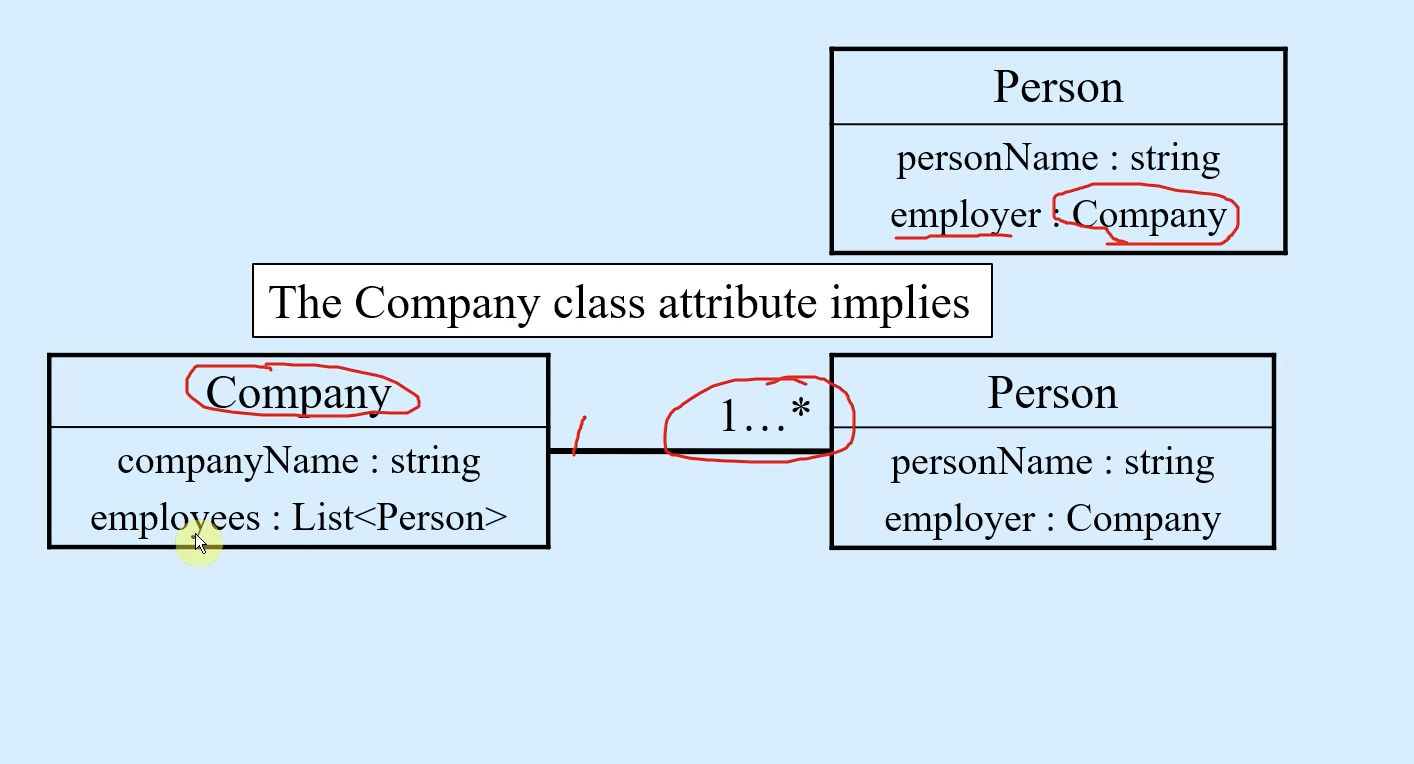

Step 1 Class-type attributes
