Part 1 Unary Associations

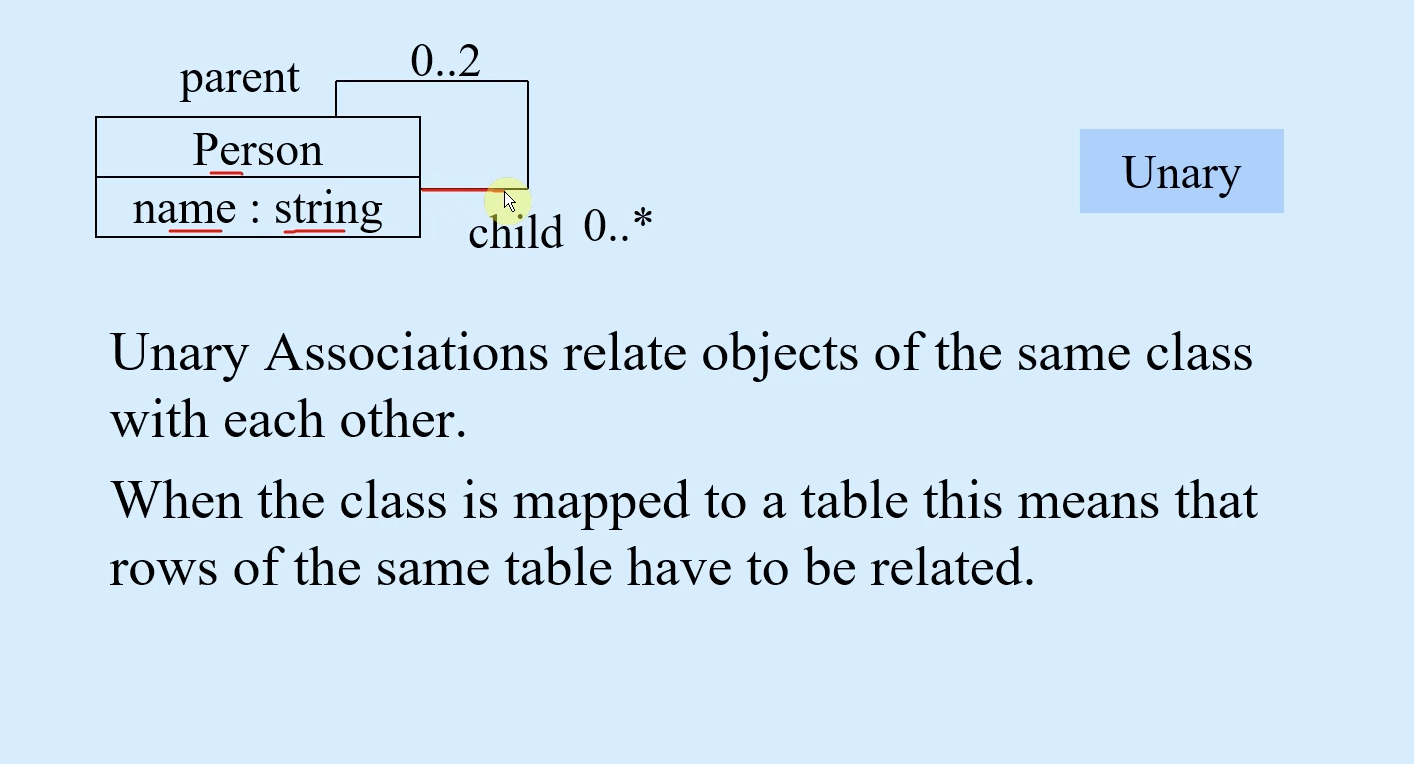

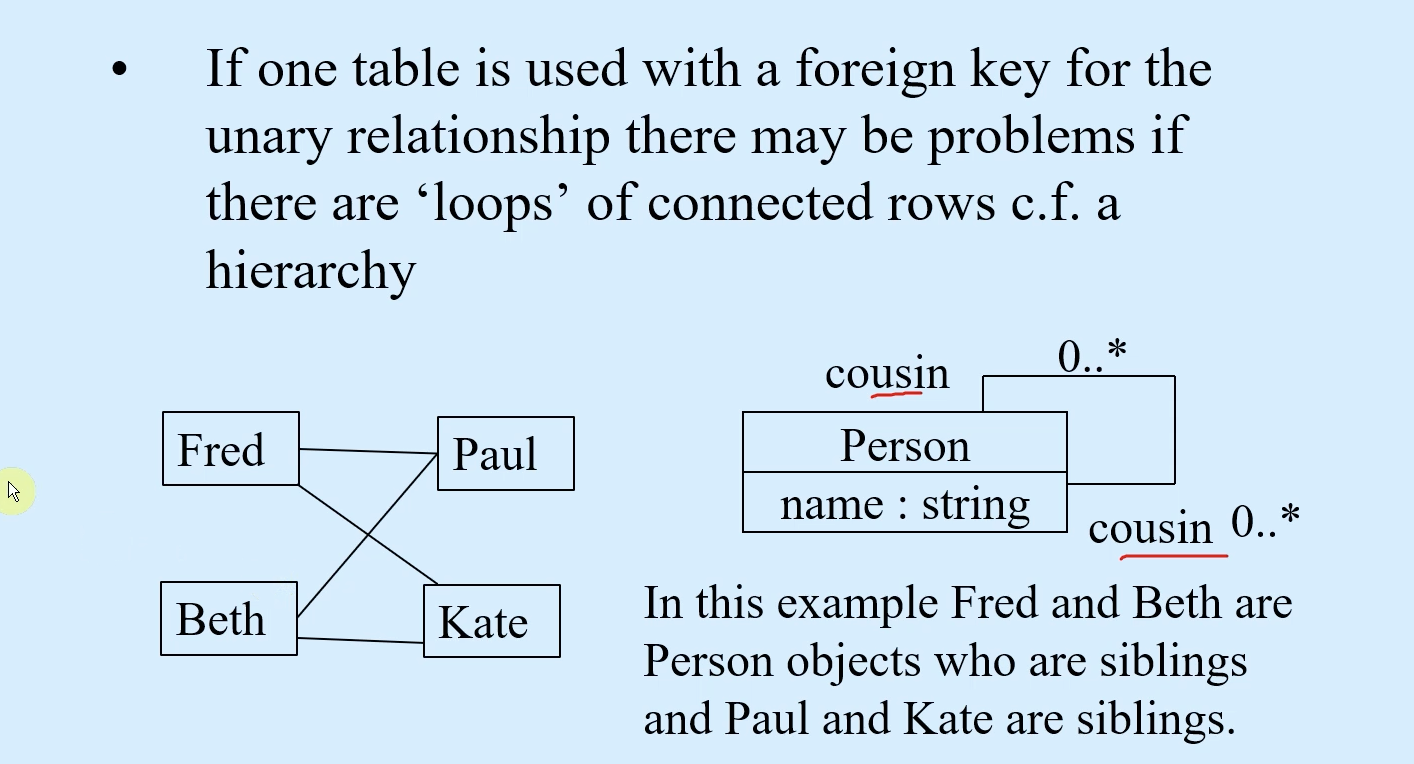

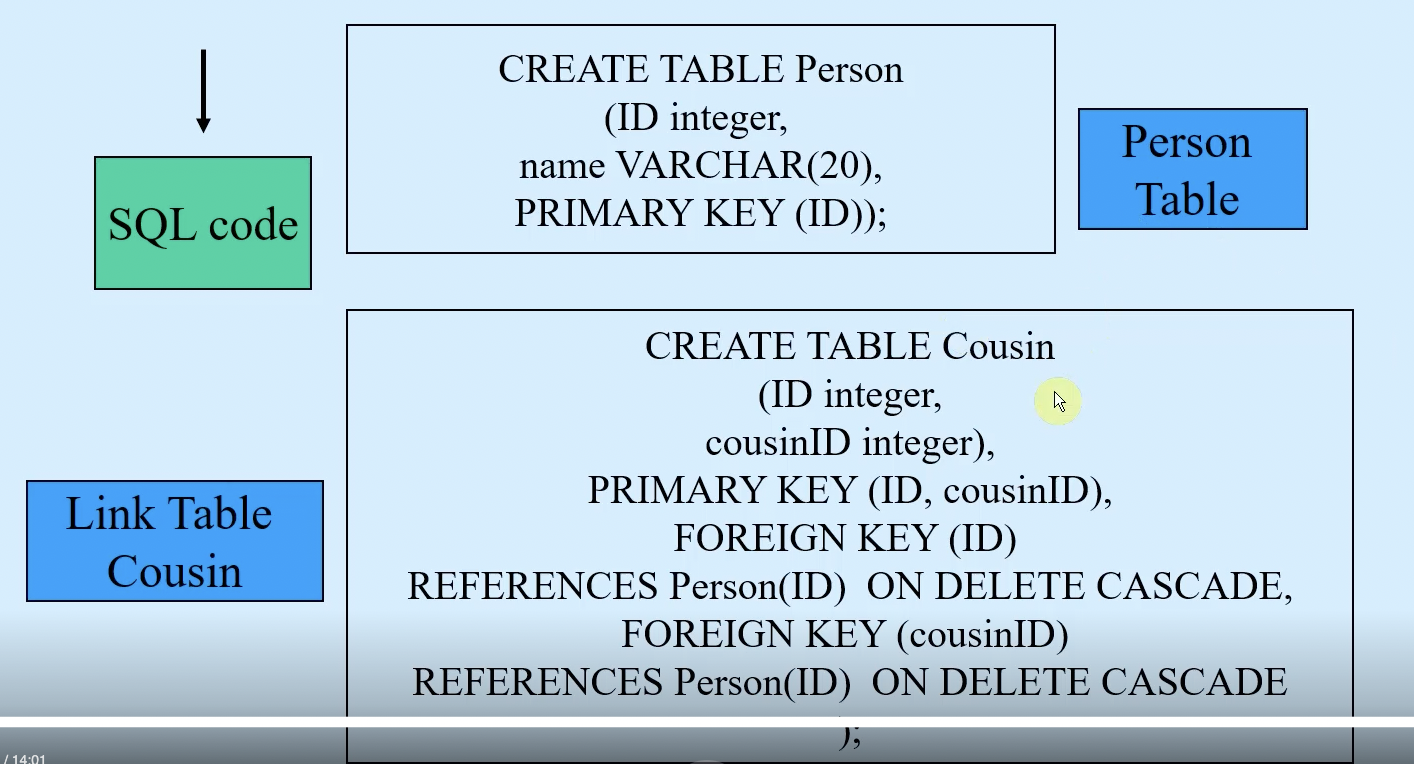

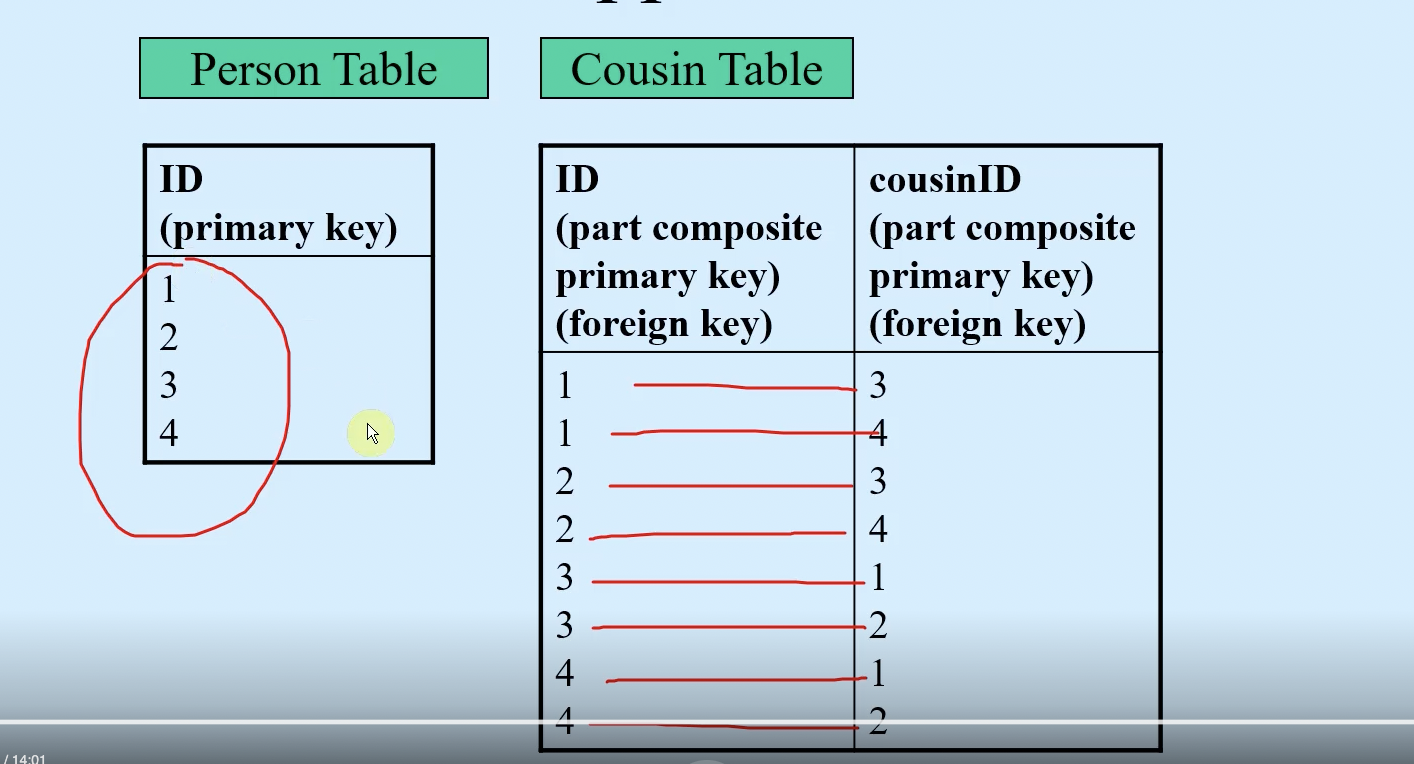

Unary association is a link between an object and another object of the same class

Part 2 Mapping Aggregation and Composition Associations

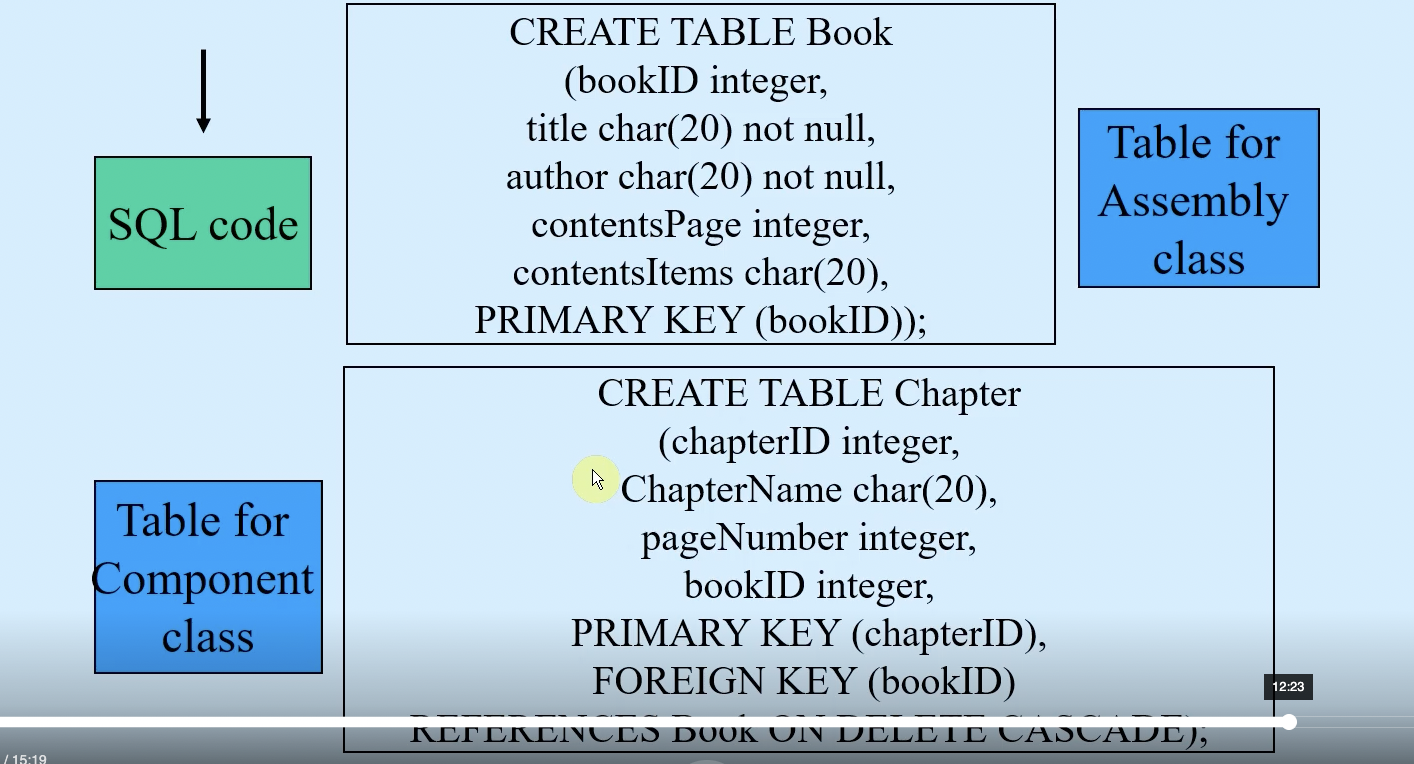

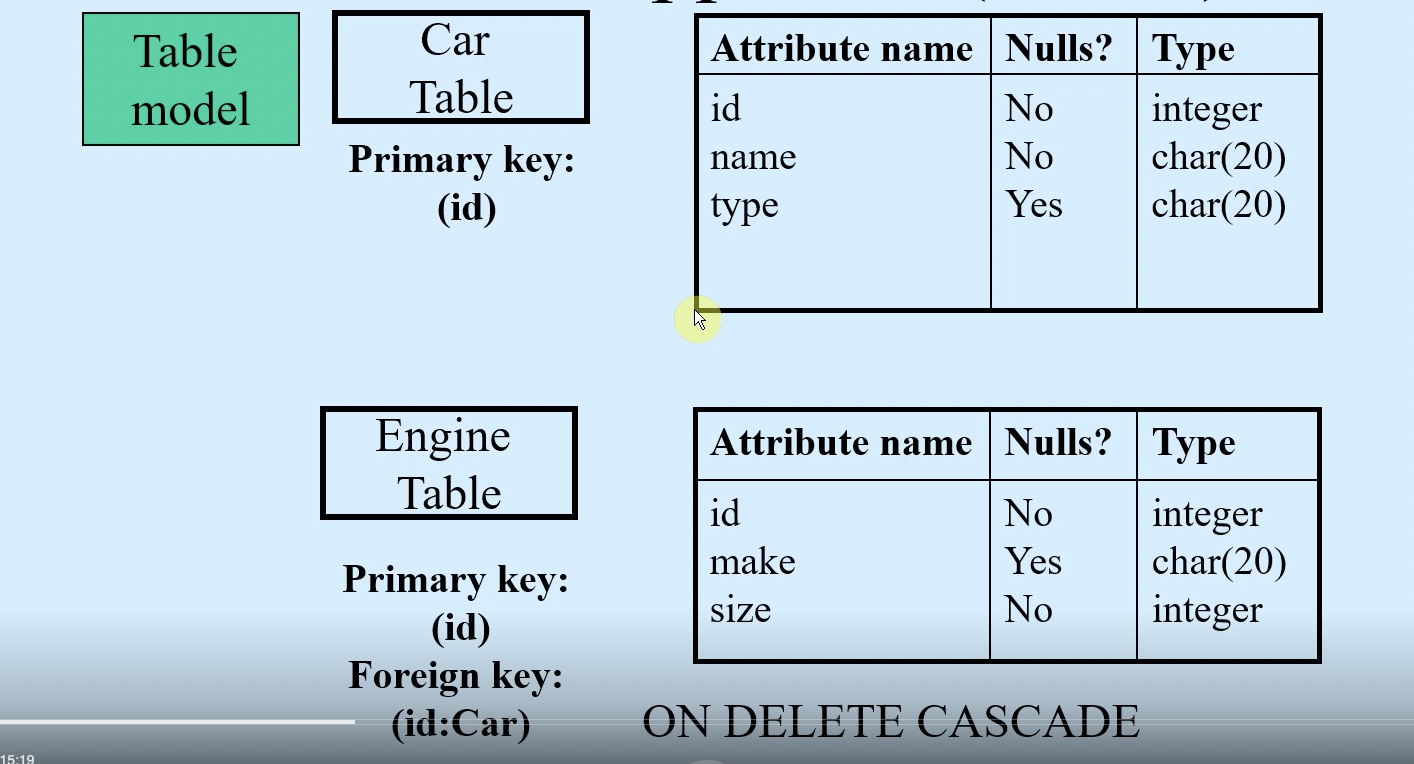

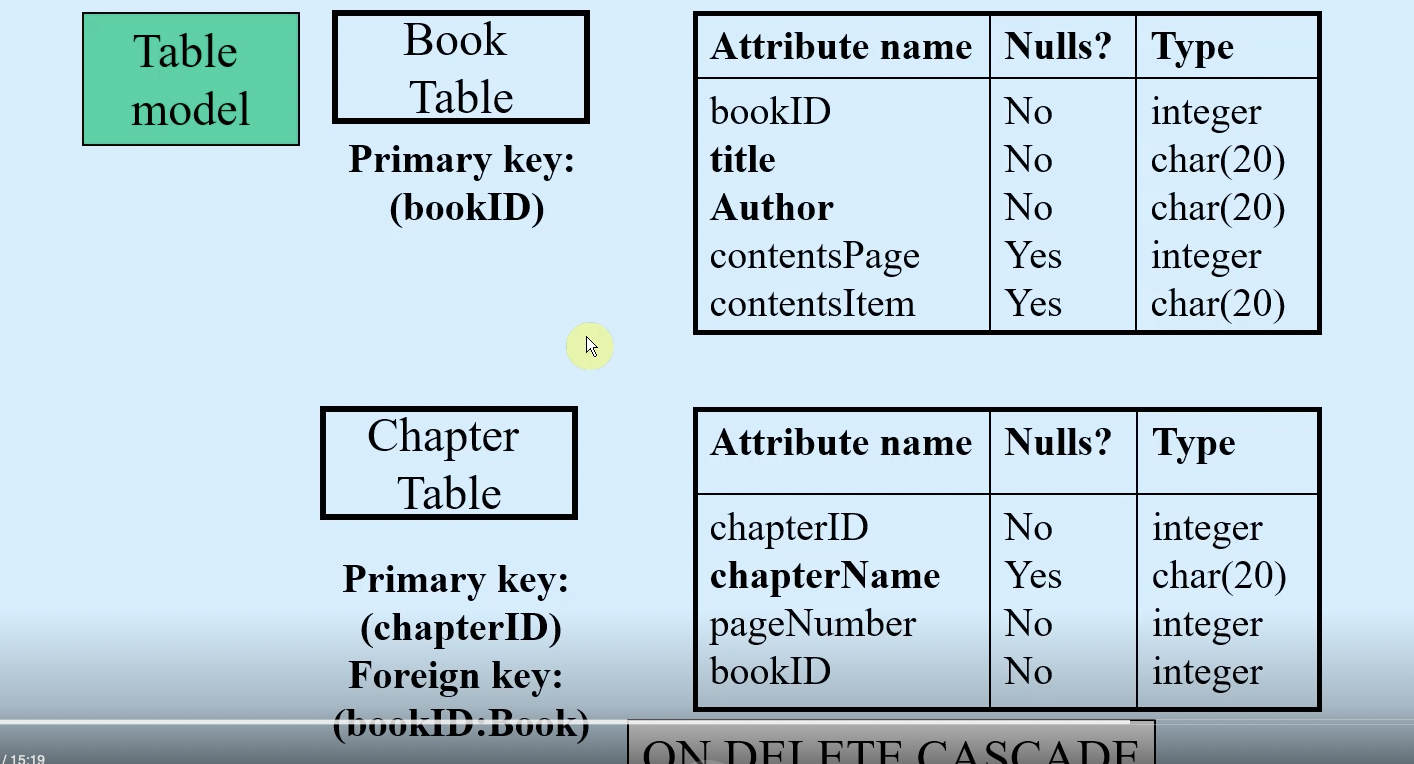

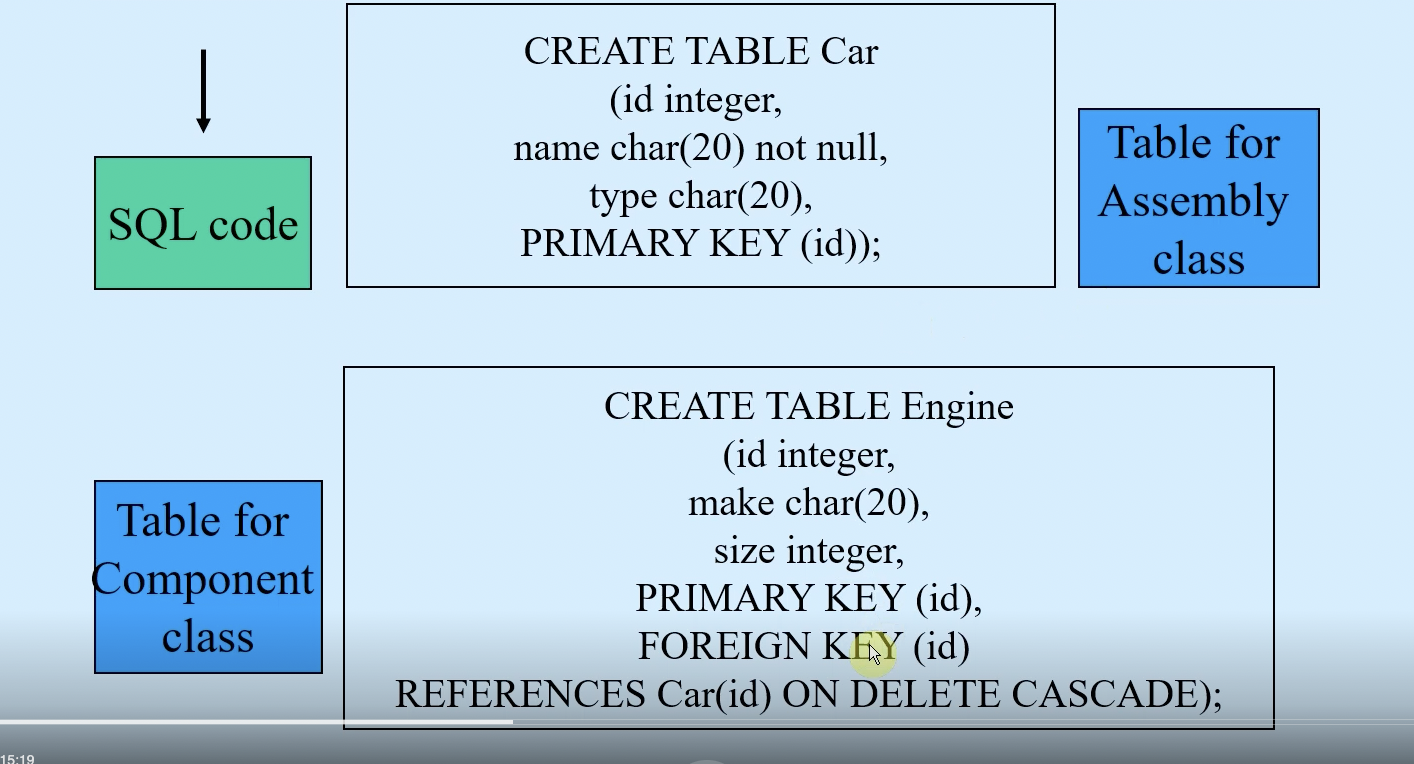

Composition

• when the parts cannot exist without the larger object

• must cascade update and delete operations

Aggregation

• when the parts can exist without the larger object

• must cascade update but not delete operations

One to One

One to Many
