Part 1: Transactions

Transaction - logical unit of work, read and writes, i think its an entire chunk of code that you send off

Recovery - if system failure, allows to gets the transactions back

Logs - record the transactions

Transaction Manager

Does the following:

• Commits

• Rollbacks

• Begin Transaction - starts when you boot up, commit or rollback

A transaction must be (ACID)

1. Atomic - all of it is submitted or none of it is

2. consistent - takes the database to one state to another

3. isolated - not seen by other transactions until it is commited

4. durable - survive in a system crash

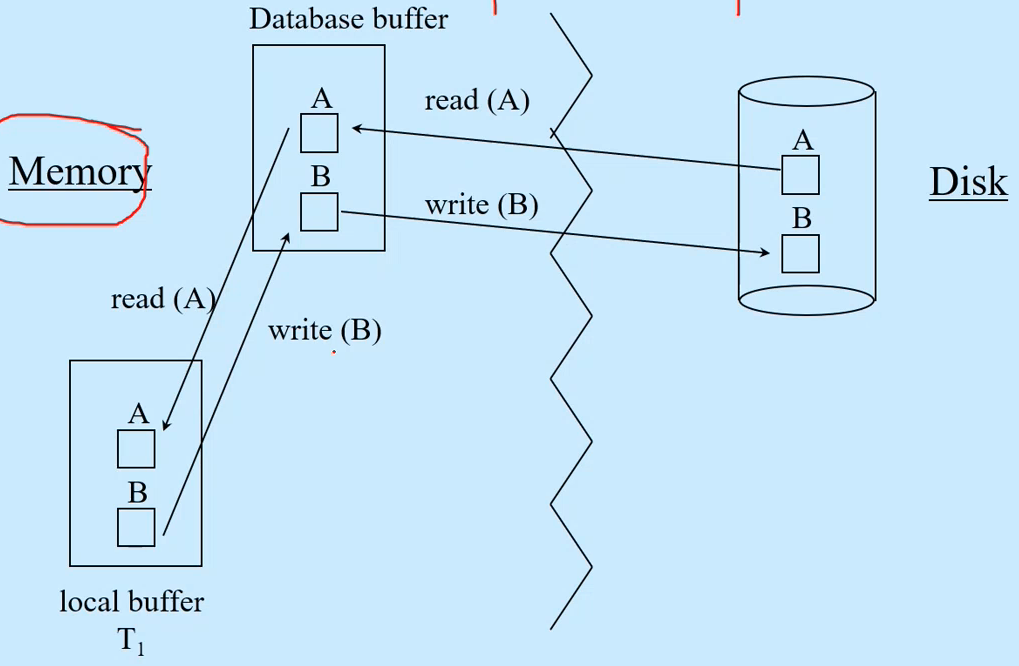

System model

Database buffer = ram = working database

local buffer = cpu area = current operations

database instance - the data stored in the buffer

For best speed the database buffer must:

1. Store a queue of transactions in the local buffer, (he mentioned fastest job first)

2. Keep data or a part of the database in the local buffer for as long as you can, until it must be changed

Memory or database buffer

• fast

• small

• volatile

• Store things working on

Disk

• slow

• big

• non-volatile

• Store things persistantly

Buffer is flushed when a commit is made

Part 2: Log files

Log file - A way to undo an update, records the old and new values

Stored on Disk

ONLY STORES THE WRITES

Write-ahead Log

Stores the:

• <Transaction, What value is changing, old value, new value>

• ALSO STORES COMMITS, only once everything is on disk

• Logs are stored before the transaction

• Before a commit all Logs must be in stable storeage

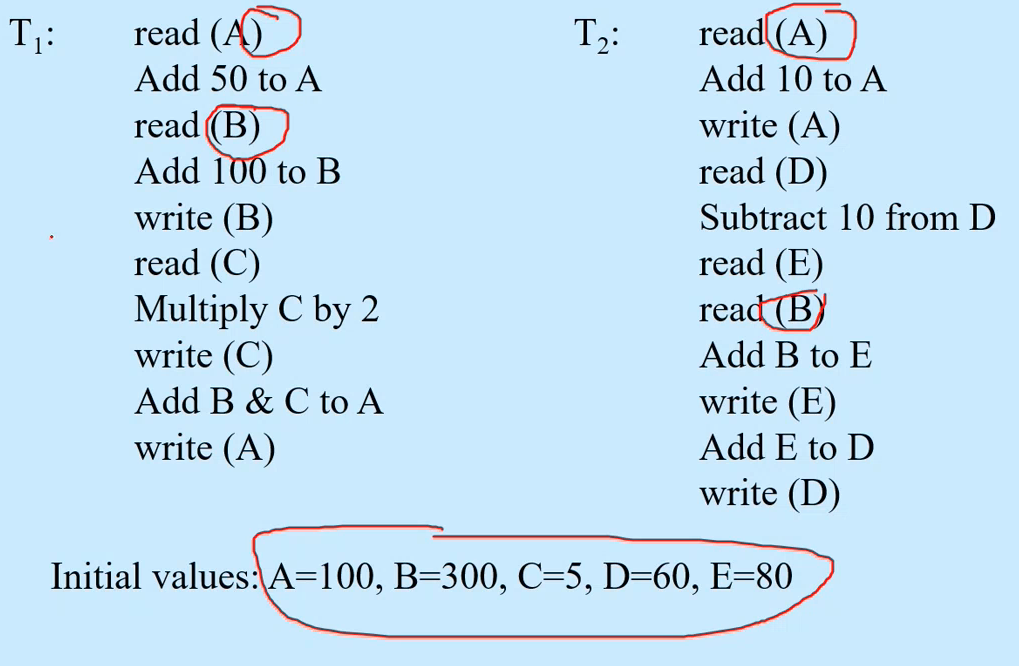

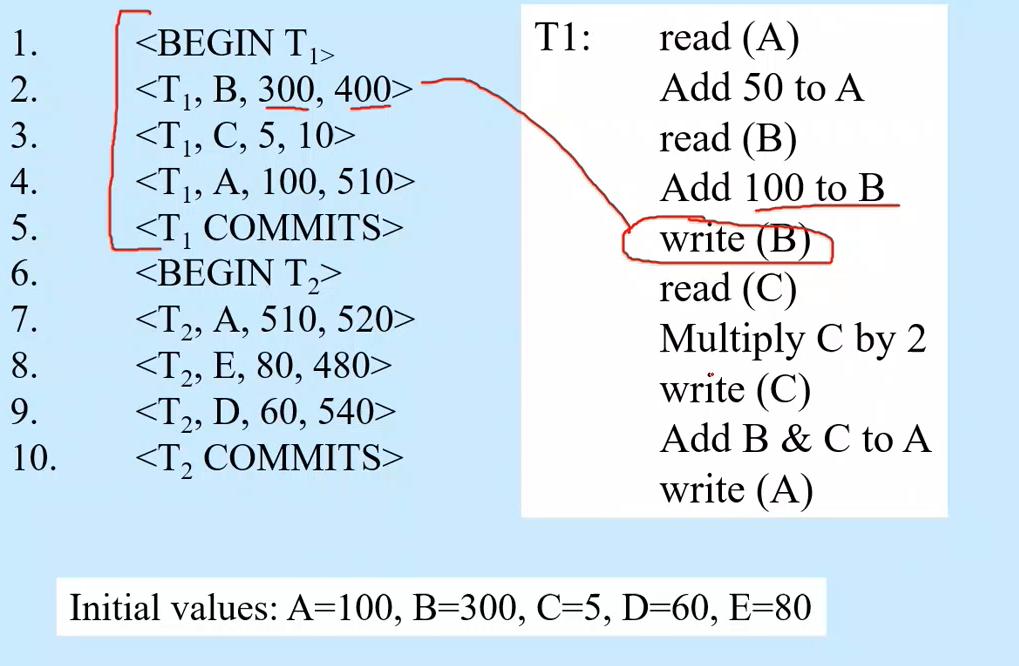

Example

Part 3: Falure

Local failure - error with a single transaction i.e. deadlock

System failure - something that effects all transactions, local buffer is lost i.e power falure

Media failure - Catastrophic failure, have things stored on different disks i.e. issue with disk

What must be done after a crash

1. UNDO - Undo any transactions that were executing

2. REDO - Some transactions may have to be redone, that were not uploaded

Undo if not committed yet - since now in disk

Redo if committed but not finished - never left database buffer

Transaction Checkpoint Record

• Stores the log buffers onto the physical log

• Flushing database buffers onto the disk

• Writing a checkpoint record to the log, list all transactions in progress

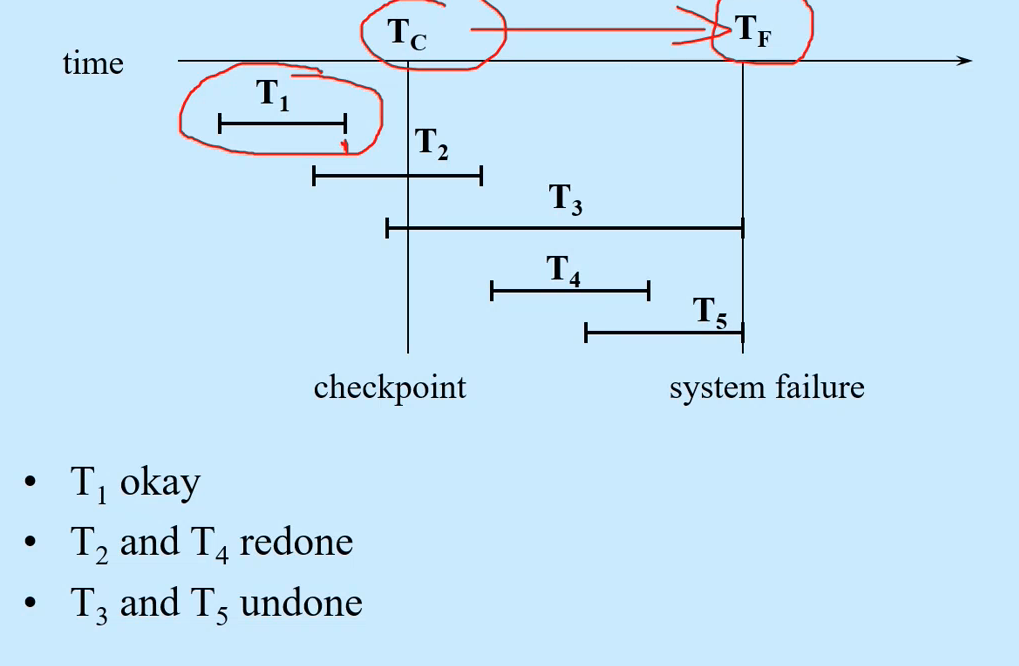

Example

T1 is okay

T2 & T4 - committed but data maybe inconsitant - checkpoint must be made... thus must be redone

T3 & T5 - never finished... thus must be undone
