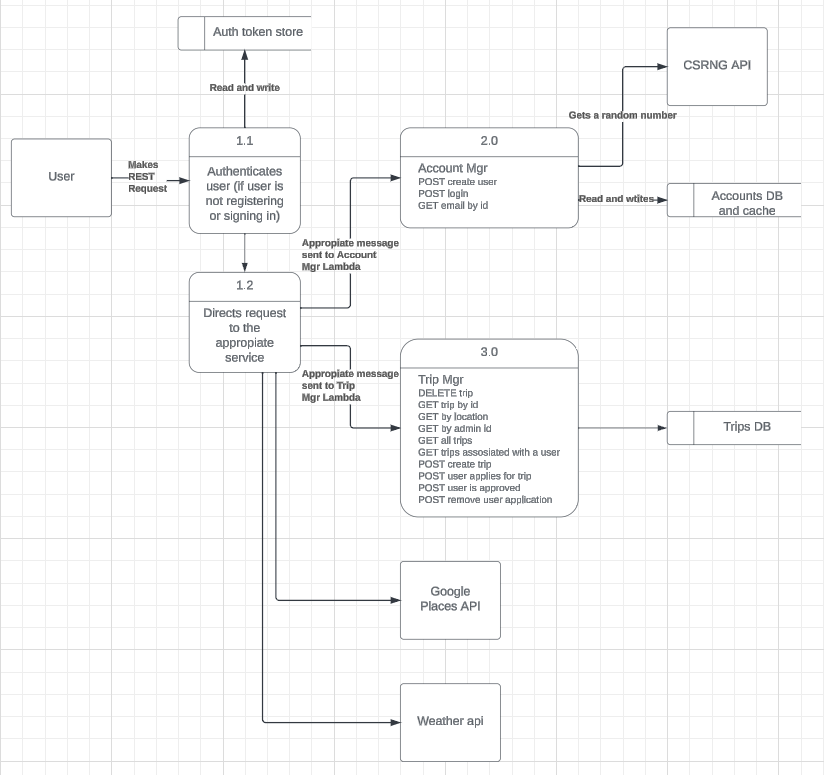

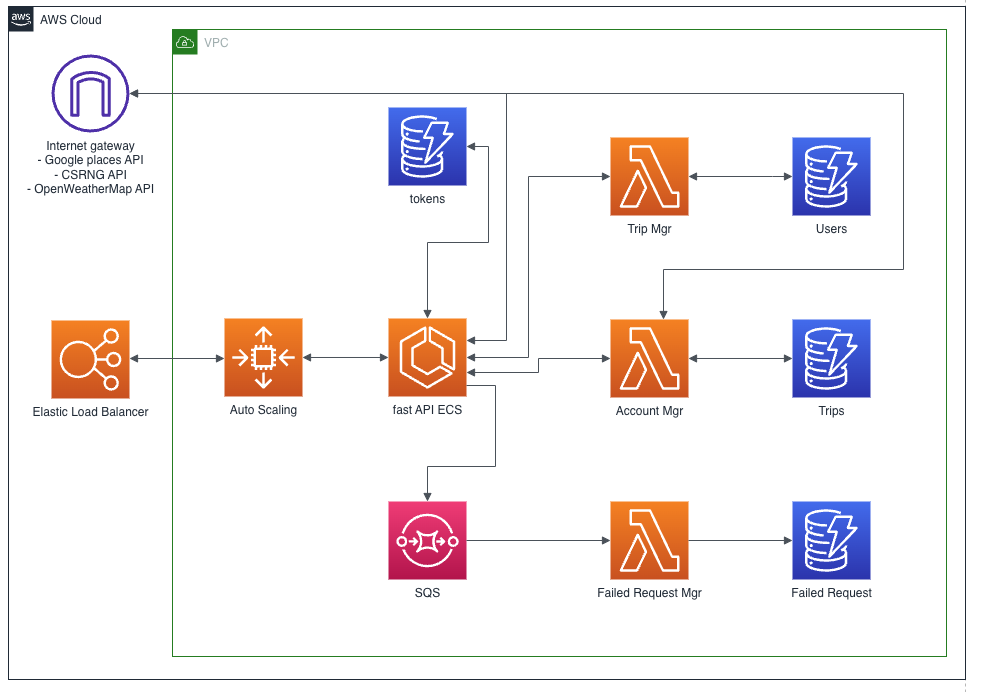

Architecture

users - DynamoDB

"{userID}": { // partition key // Number
	"email": "{users email}", // secondary index
	"password": "*********", // should be hidden
	"trips_awaiting_approval": [
		"{tripID}",
	],
	"approved_trips": [
		"{tripID}",
	],
}

trips - DynamoDB

"{tripID}": { // partition key // Number
	"start_date": 05478968550, // sort key
	"end_date": 86768156751,
	"admin_id": "{userID}" // secondary index
	"location": "london", // secondary index
	"title": "text",
	"description": "text",
	"awaiting_approval": [
		"{userID}"
	], // must have a limit
	"approved": [
		"{userID}"
	], // must have a limit
}

Tasks of each service

FastAPI - ECS

MoSCoW	Requirements
MUST	Points messages to the correct lambda
MUST	For each call will validate the user’s `token` for `userID` by checking if: a. `userID` is in `userTokenCache` b. the `token` matches the `token` in `userTokenCache`

TripMgr - Lambda

MoSCoW	Requirements
MUST	GET trips General: - Return most recent start date Specify `location`: - Return only trips with that `location` Specify `start_date`: - Return trips from a certain `start_date` Specify `adminID`: - Return trips that have that `adminID`
MUST	UPDATE If user wants to go on a trip it must: - add their `userID` to the `awaiting_approval` column in the `trip` entry - it must also add the `tripID` to the `trips_awaiting_approval` in the `user` entry
MUST	UPDATE The admin must beadle to approve or disapprove of users attempting to go on the trip: Approval flow: - Update `trip` by moving the `userID` from `awaiting_approval` to `approved` - Update `user` by moving the `tripID` from `trips_awaiting_approval` to `approved_trips` Denied flow: - Delete the `tripID` from the `trips_awaiting_approval` or `approved_trips` - Delete the `userID` from `awaiting_approval` or `approved`
MUST	UPDATE If the user decides to not go: - Delete the `userID` from `awaiting_approval` - Delete the `tripID` from the `user`
MUST	CREATE If user wants to make a trip they must specify: - `start_date` - `end_date` - `location` - `title` - `description` The `trip` will be added to `master` with the following attributes: - `adminID` - the `userID` of the creator - `awaiting_approval` - set to an empty array - `approved` - set to an empty array - `start_date` - `end_date` - `location` - `title` - `description` The `user` row will also get the `tripID` appended to `admin_trips`
MUST	DELETE If a user wants to delete a trip: The request must specify: - `tripID` Requirements: - The requesters `userID` must match the `adminID` Action: - All the `users` that are mentioned in `awaiting_approval` & `approved` must get the trip removed from theres respective lists - The `adminID` must get the `tripID` removed from `admin_trips`
SHOULD	If any request fails the original message should be added to the DLQ

AccountMgr - Lambda

MoSCoW	Requirements
MUST	CREATE A user must be able to sign up, for an account they must specify: - `email` - `password`
SHOULD	UPDATE A user should be able to update there password: - they would enter their current `password` and a new one, this will then update the `users` password - the cached token for the user sign-in must then be removed from `userTokenCache` (stored on ECS)
SHOULD	DELETE A user should be able to delete their account: - For each `tripID` in `awaiting_approval` & `approved` the `userID` must be removed - Call `Delete` on `TripMgr` for all `tripIDs` in `admin_trips`
MUST	SIGN-IN If A user wants to sign in: - Must return a `token` for the user to use as a access token - Must add that token to the `userTokenCache` (stored on ECS)
SHOULD	If any request fails the original message should be added to the DLQ

WeatherMgr - Within the ECS

MoSCoW	Requirements
MUST	GET If the user requests for the weather: 1. Check if the weather for that `location` and `date` is in `weatherCache` a. If it exists return the data else b. call the OpenWeatherMap API
SHOULD	If any request fails the original message should be added to the DLQ

ImageMgr - Within the ECS

MoSCoW	Requirements
MUST	If the user requests for an image: 1. Check if the image for that `location` is in `imageCache` a. If it exists return the data else b. call the Google places API
