Main Memory - Chapter 8

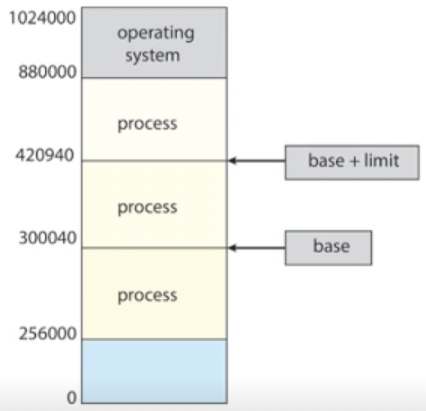

Protection - processes can only access addresses within its address space

If address is not within base and base + limit, then a trap is thrown.

(base register (also known as relocation register), limit register)

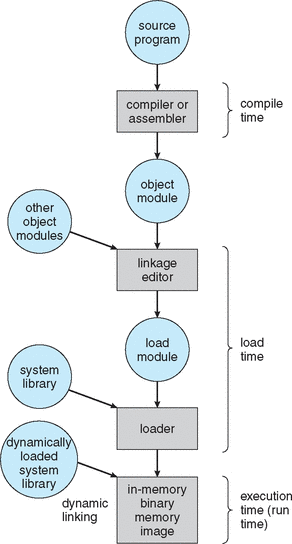

Address binding

Linker or loader will bind the source code address to an absolute address.

• Compile time - it is possible to specify an absolute address here, but you will have to recompile each time

• Load time - code must be relocatable, since start address is not known

• Execution time - binding maybe delayed if the program gets relocated

Logical vs Physical Addresses

Logical address - address referred to by the CPU, since it does not want to deal with the program addresses relocating

Physical address - address seen by the memory unit

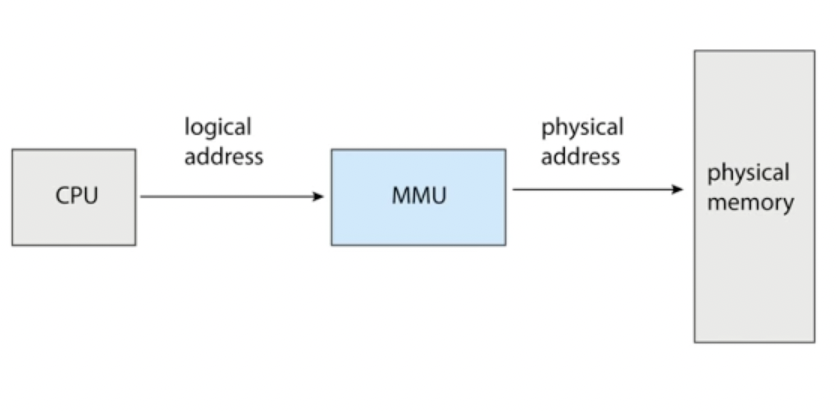

The MMU maps the logical address to the physical address

Memory Management Unit

MMU - its job it to translate the logical address into a physical address

One possible way is to add a value for the length of the programs prior, to point to the start of the desired program, base register

Typically deals with execution time binding

Dynamic Loading

Only the parts that needed are loaded into memory

Static linking - when all libs and code are made into one bin file

Dynamic linking - linking is left until execution time, a stub refuses to the code that is needed, this allows for programs to share libraries

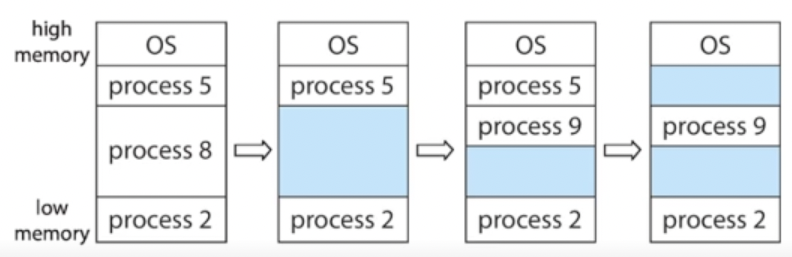

Contiguous Allocation (Method 1)

1. OS is stored at a low memory

2. User processes are in high memory

3. Each process has its own slot in a single continuous memory

4. MMU maps addresses using the base and limit register

This can allow for processes to move and change size

Variable-partition - the size gap a process needs

Hole - block of available memory

First-fit - put the process in the first hole

Best-fit - put the process in the smallest hole

Worst-fit - put the process in the largest hole

External Fragmentation - total memory exists, but its is not continuous

Internal Fragmentation - available block is larger that what is needed

Paging (method 2)

Allows for non contiguous memory

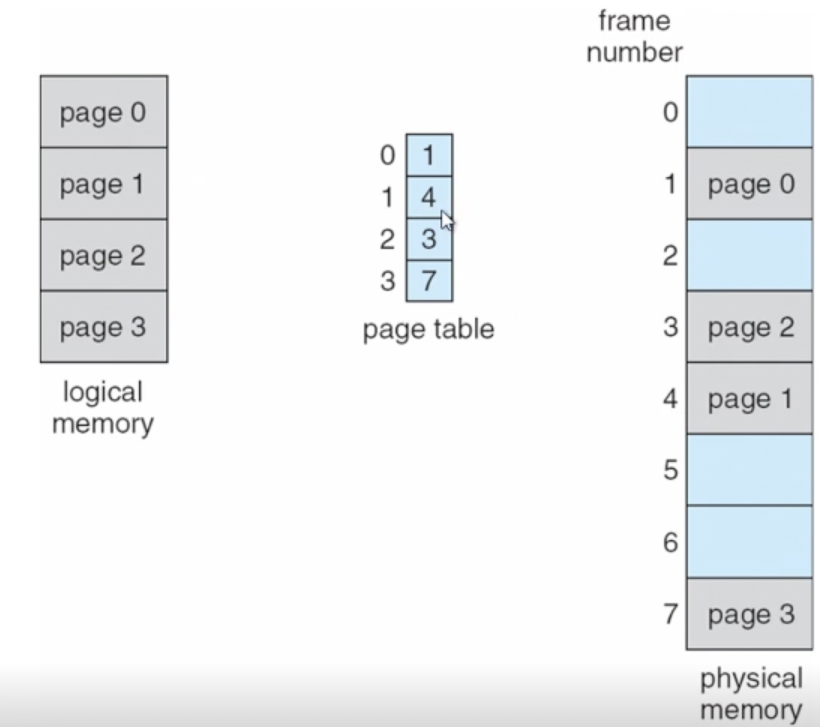

Frames - physical memory divided into frames

Pages - logical memory divided into pages

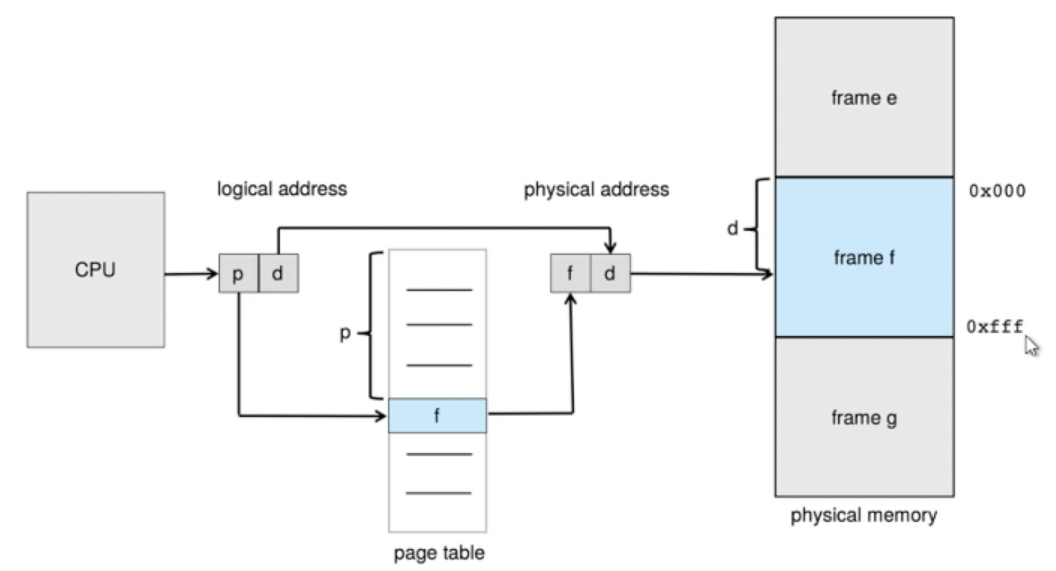

Page table - translates pages into frames

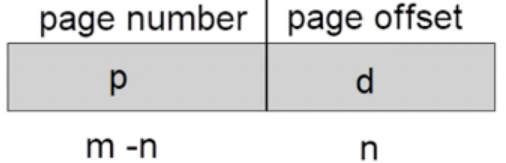

Page number - used to index the page table for the frame in memory

Page offset - used in-conjunction page number to define how far you want to look into the frame

Implementation of page tables

Page-table base register - pointer to start of the page table

Page-table length register - size of the table

two memory access - means you have to send address to the page table then to the physical memory

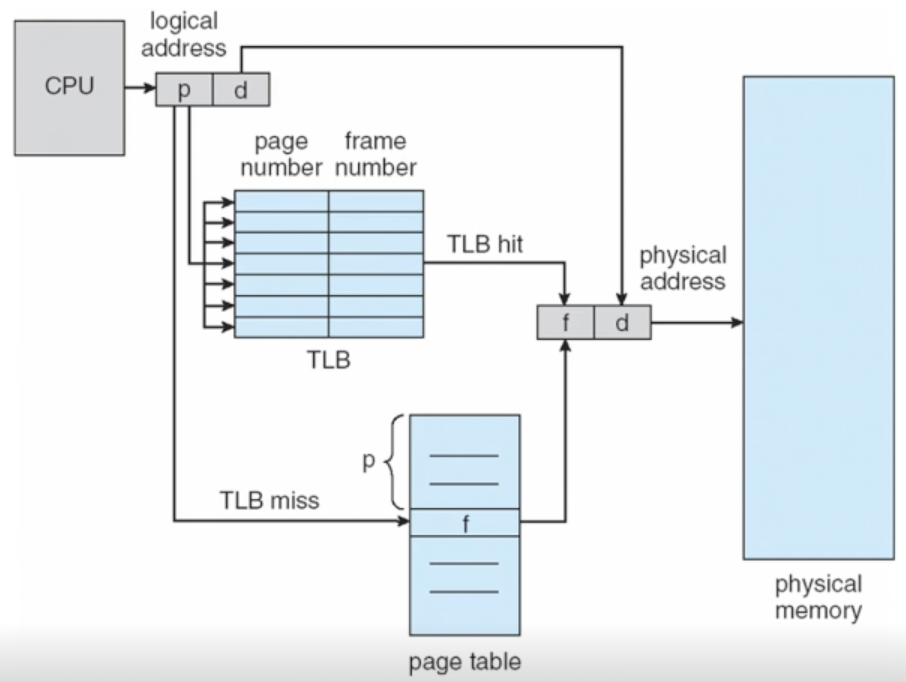

Translation look-aside buffer (TLBs) - basically caches pages that are being access regularly for a quick look up

Memory Protection

protection bits - specifies whether a a page is execute only, read only ...

valid/invalid bit - specifies whether a page is in the logical address space

Shared Pages

shared code - code that is shared between multiple processes

private code - each process does not share there libs

Page table structure

Multi-level/Hierarchical paging - where you have a table that points to another table, this means that the table being pointed to can be stored in virtual memory to free up space

Hashed paging - a hash is used to find the physical address, if multiple pages have the same address then a linked list is used

Inverted page table - stores the address for each page in memory, only searching inside of memory

Swapping

Backing store - disk stores pages that overflow the memory

Roll out, roll in - page is swapped for one in disk

There is a ready queue for pages that are ready on disk

Pages cannot be swapped if waiting
