Virtual Memory - Chapter 9

Virtual memory - Separation of user logical memory and physical memory

Virtual address space - the address space available in virtual memory, different for each process

Advantages

• Only part of the program needs to be in memory

• More programs can be open

• More CPU utilisation

• Less I/O when swapping processes

• Virtual memory is larger than physical memory

Implementation methods

• Demand paging

• Demain segmentation

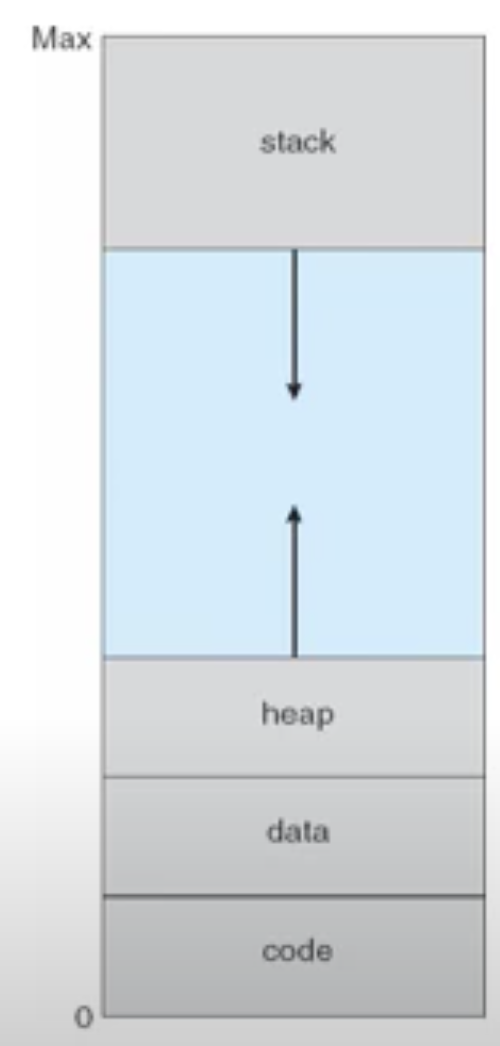

Virtual Address Space

Physical Memory is not given to the hole

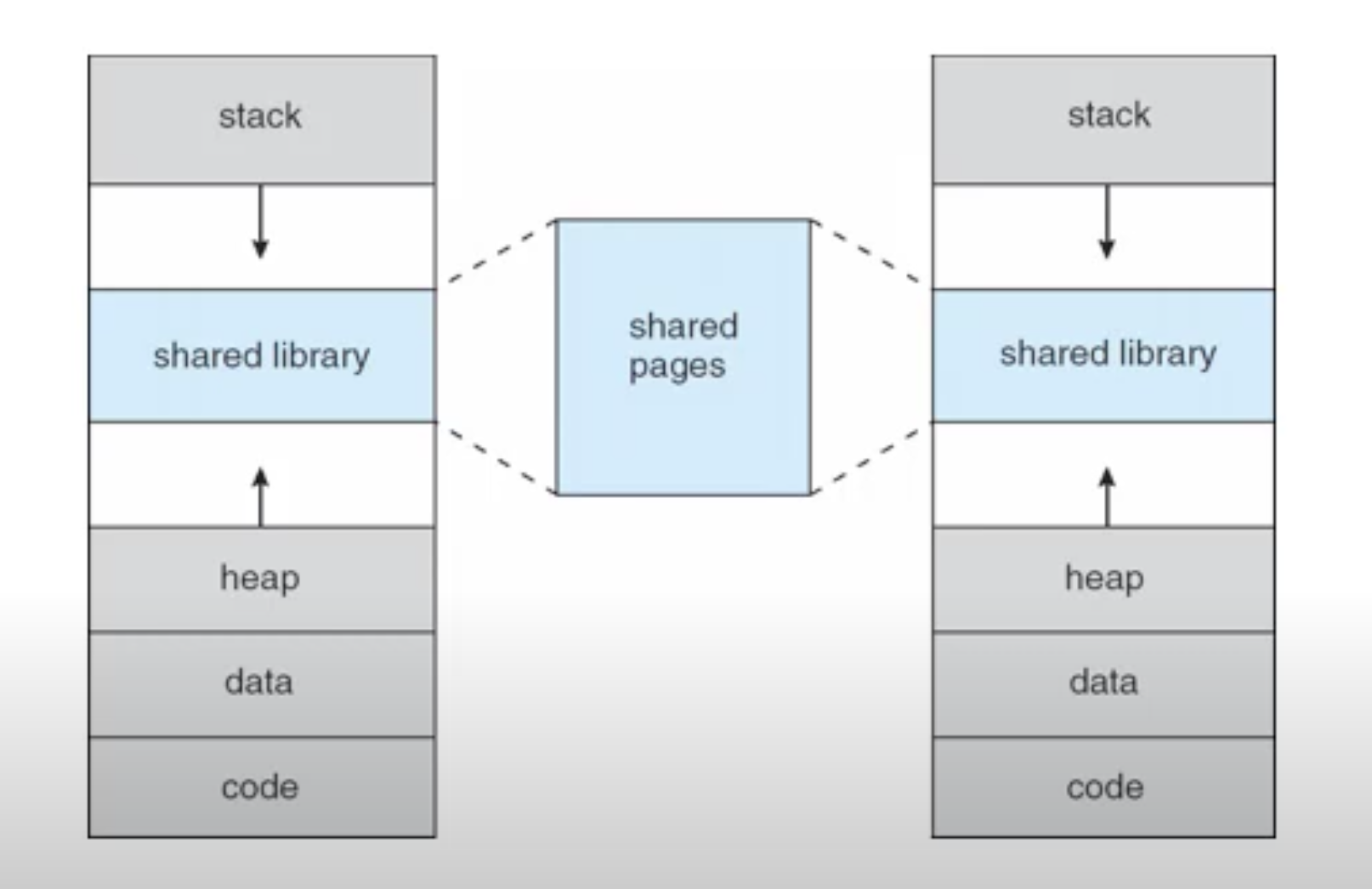

Dynamic libs are stored in the hole

Pages are also shared when forked()

Demand Paging

Demand paging, (lazy swapper) - pages are only brought into memory when needed, needs extra hardware for a validation bit

Memory resident - pages that are already in memory

valid-invalid bit - determines on the page table wether the page is in memory

page fault rate - 0 never faults, 1 always faults

locality - a set of pages that work together, demand paging typically brings in localities

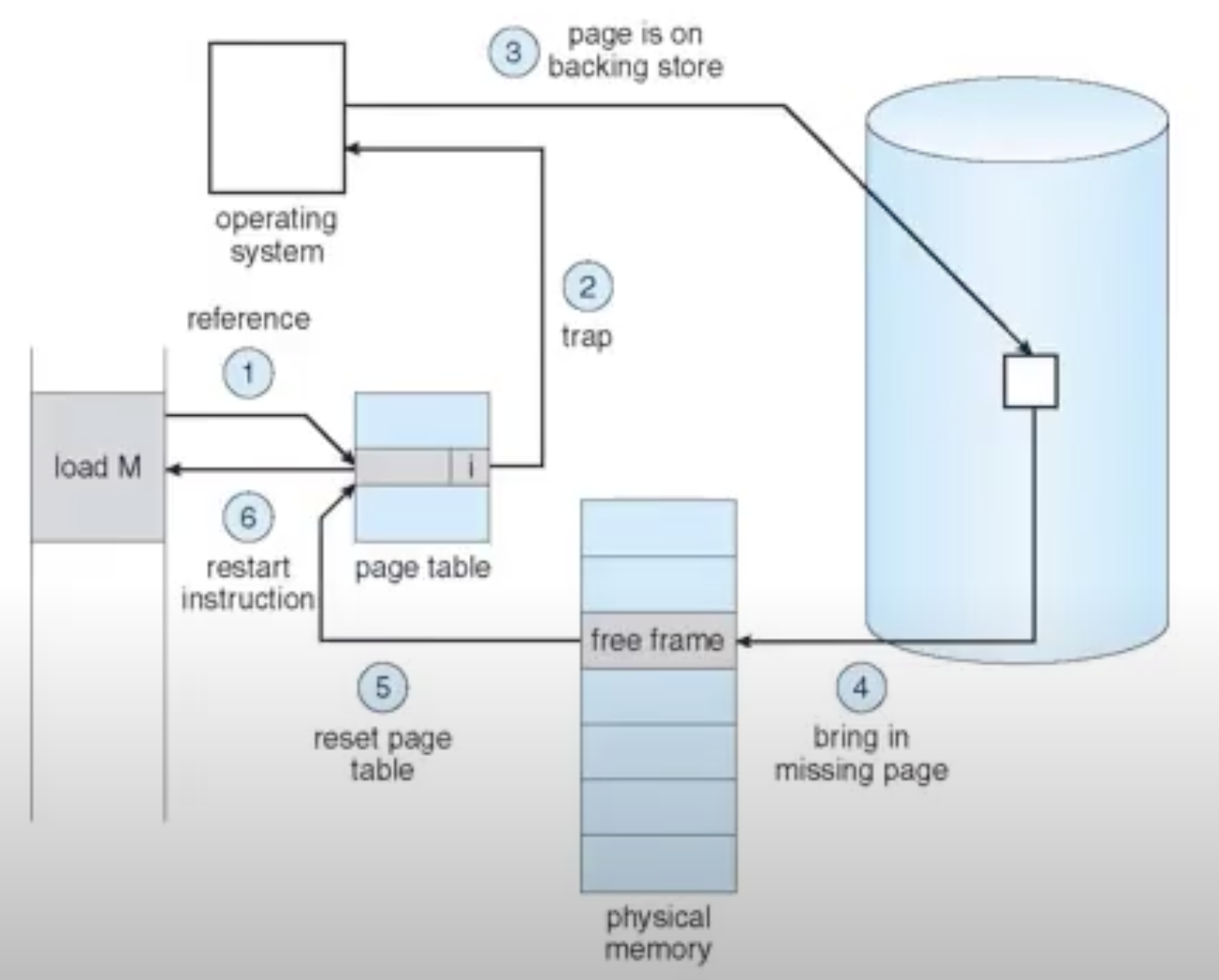

Page fault trap

page fault trap - if there is a reference to a page not in memory then a page fault trap

1. Check if the page exists, by looking at another table
   1. if it does not exist abort
   2. if it does exist but it is just not in memory

2. find a free frame

3. move the frame from disk into memory, replacing the free frame

4. set the new frame to valid

5. retry the last instruction

What could happen in demand paging

1. No pages in memory
   1. pre demand paging

2. A process may reference multiple pages not in memory

Swap space

swap space - a list of pages that are allowed to be swapped if a page fault occurs

the advantage of using swap space is that, the page can still be used until it is swapped, and can also be brought out of swap space

Copy on Write

When a process vfork(), they will have pages that are the same, they can share the pages that are the same until they modify it in some way, then a duplicate must be made

Page replacement algorithms

if no free frames a algorithm is needed to select victim frames

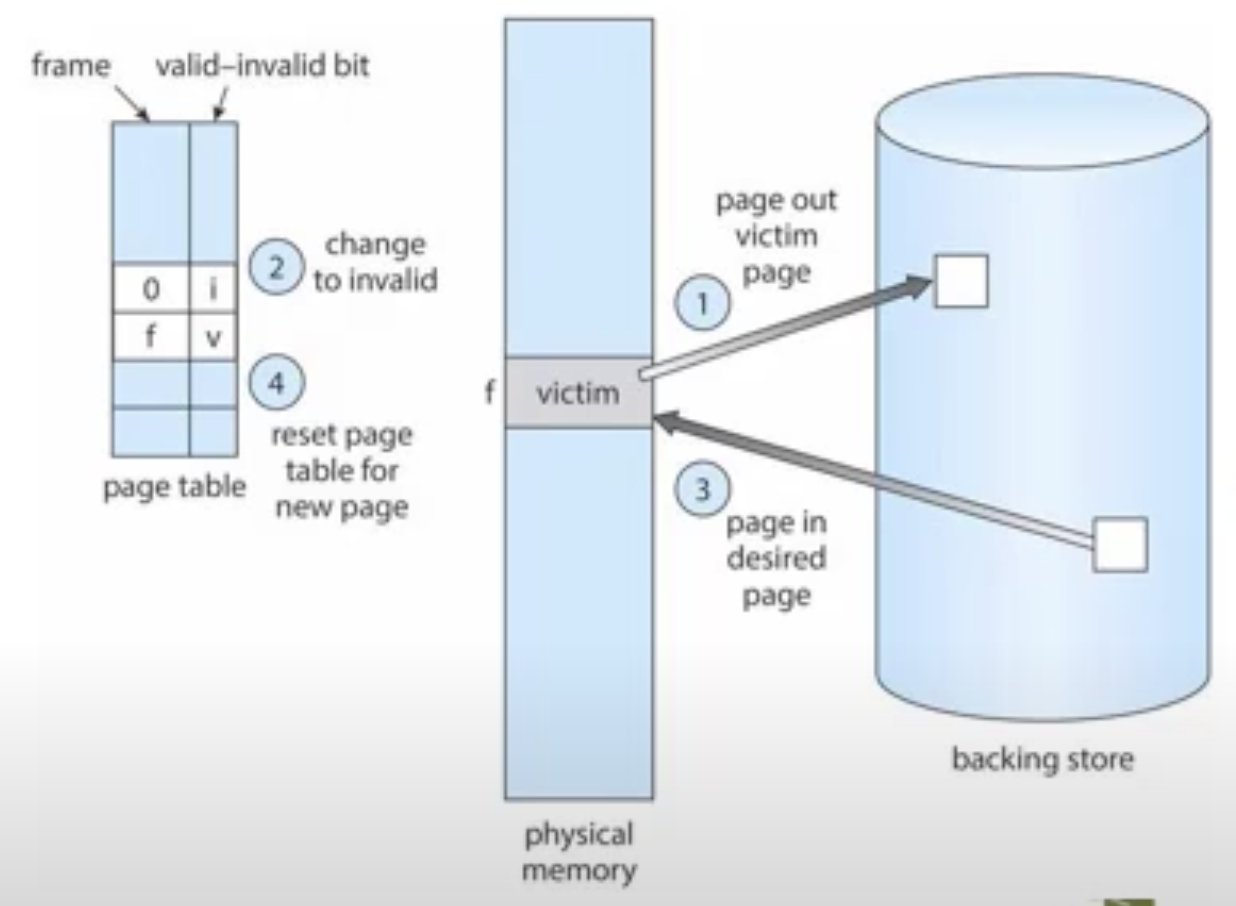

Basic

1. Find desired page on disk

2. Find free frame
   1. if no free frame select a victim frame

3. Swap frames, and update tables

4. Resume process

Optimise

• Use modify/dirty bit, determines wether a page was modified, so a frame does not need to be rewritten to memory

First-in-First-out

replace the page that came in first,

achieved using a queue,

the queue is size is the size of the number of max frames in memory

• Second chance, uses a reference bit, if value is 1 then ignore look at next value, could also use a clock

Optimal Algorithm

Replace the page that is not going to be referenced for the longest time

Requires future knowledge therefore not possible

Last Recently Used (LRU)

replace the page that has not been used for the most amount of time

• Make a counter for each page increase when referenced, replace page with lowest value, decay with age

• Create a stack, each time a page is used put it on the top of the stack, replace last one

• Reference bit, set to one if used, replace pages with 0

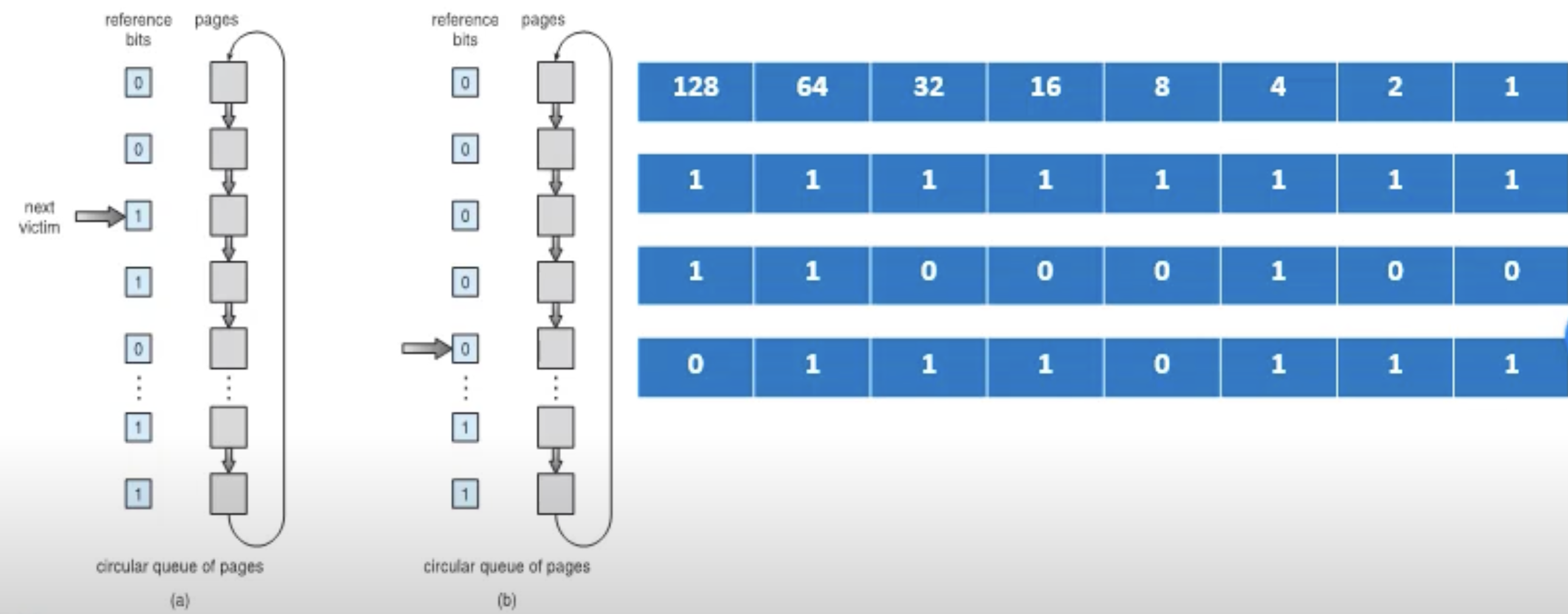

Second chance

Add one to the largest value when used, each time a page fault occurs bit shift right, replace with smallest value

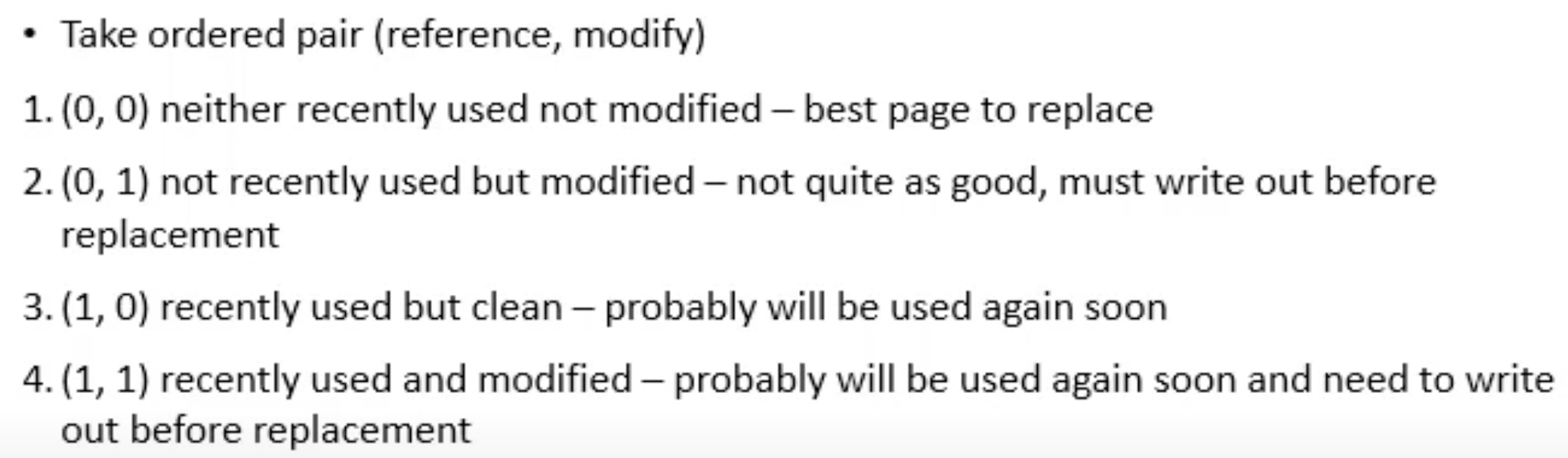

Could replace values that are least desirable

Best to replace order goes: 1, 2, 3, 4

Most/Least Frequently Used

Most Frequently used - replace the page with the highest count, since the lowest count is probably due another reference

Least Frequently used - replace pages with lowest count

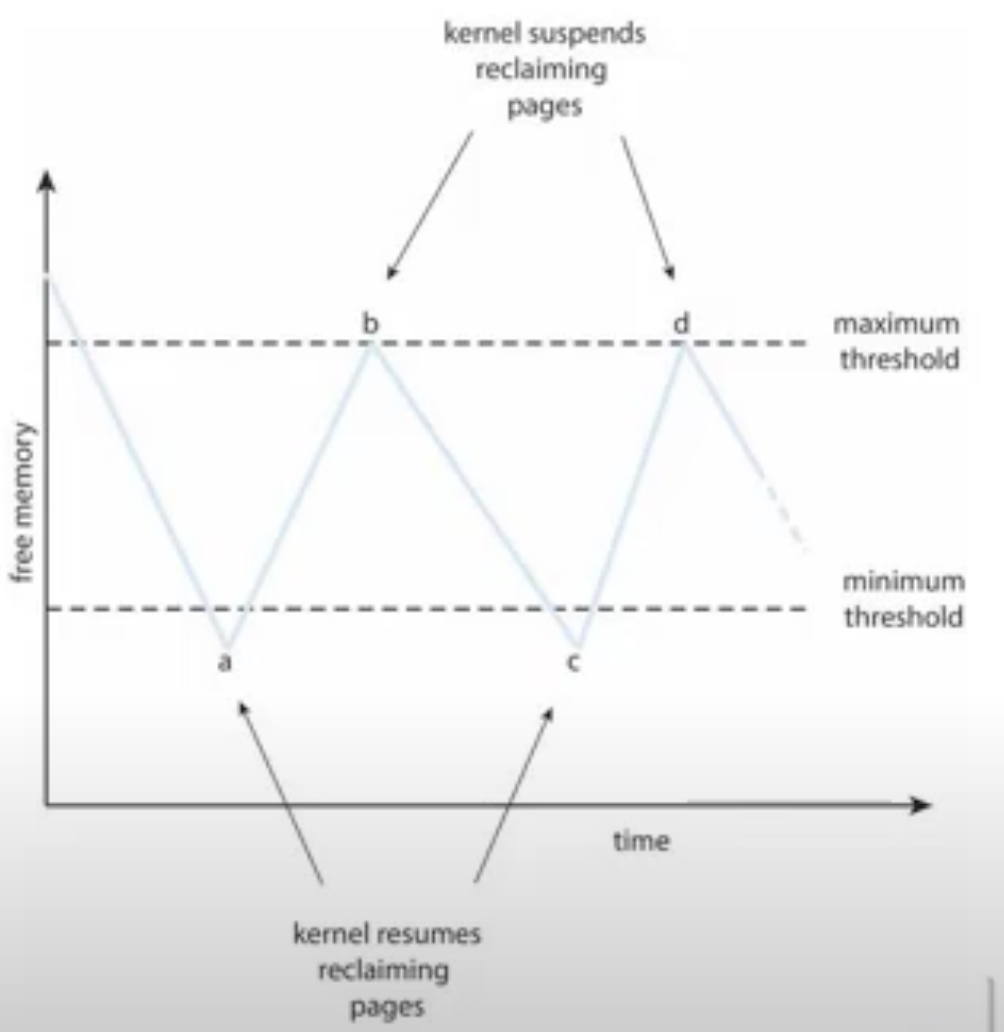

Page Buffering

• Keep a list of free frames

• When needed evict a frame

• All dirty pages, write update memory, set to non dirty

• Take note of free frames, so if referenced then no need to call from memory

Fixed Allocation

Each process has a equal number of frames, with some kept as a free frame buffer pool

Priority Allocation

Give processes with higher page faults, frames from processes with lower page faults

Global Replacement

Free page buffer for all processes

Local Replacement

Free page buffer for each process

Thrashing

Thrashing - a process that spends that is busy swapping pages in and out of virtual memory

• Low cpu utilisation

Thrashing occurs when the locality is smaller than the memory available

Working set model

Takes note of the currently most used pages, the goal is for it to encompass the entire locality

Working set - all pages in memory

too small, wont contain the entire locality

too big, will contain too many localities

to implement use timers, or reference bits

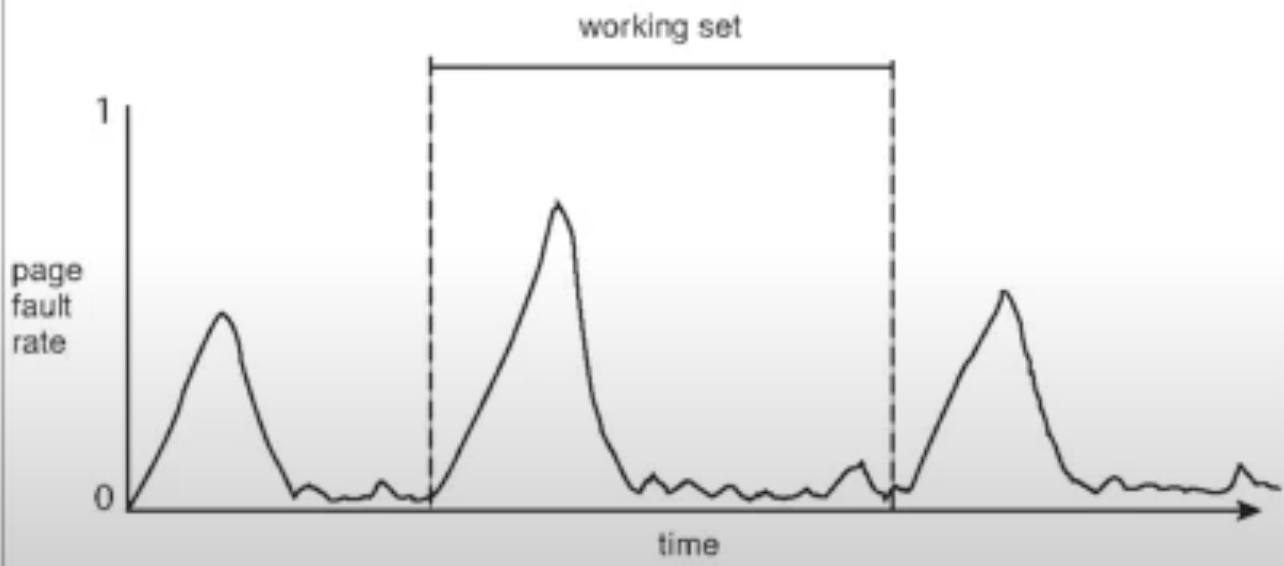

At the start the working set is loaded, the page fault rate drops

Page Fault Frequency

Number of times a process faults

Process will lose frames if faults are low

Process will gain frames if faults are high
