Introduction

Formal methods

Where do project ideas come from?
  • Some kind of pain or annoience
  • Someone will say that something needs to be done to solve this issue

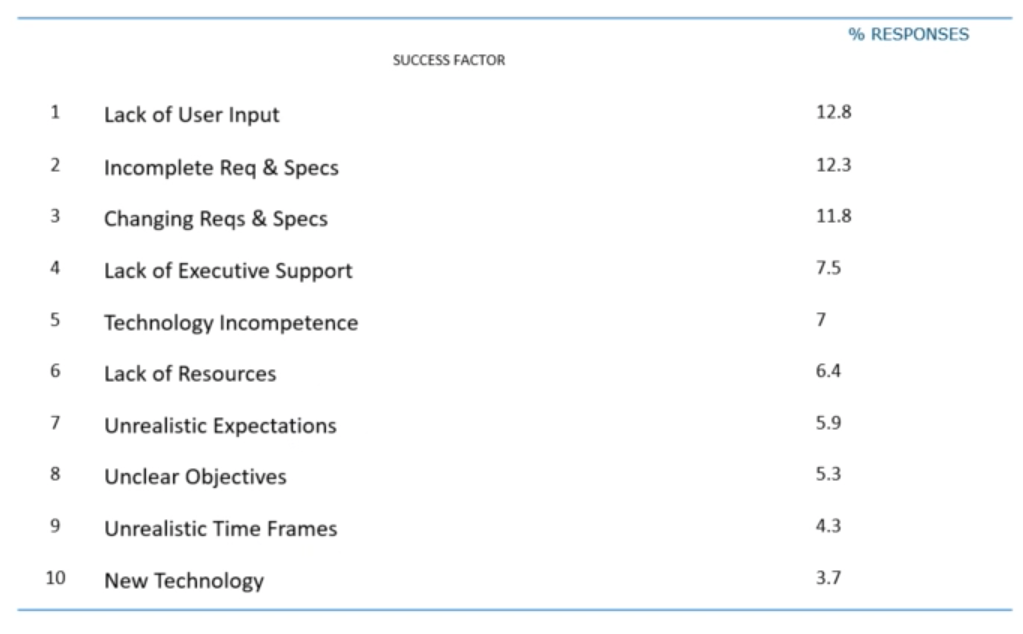

Reasons for failure

Communication: This is where what is said and the understanding is the same

What percentage of IT projects fail due to bad planning?

70%

Why plan?
  • Cost of changes one the project is delivered is huge
  • They may be late
  • Lack features
Why have a formal method?
  • Allows you to know what the end product will look like
  • Allows you to communicate better with the costomer
  • Allows you to see what the project has failed at, i.e. missing feature or the feature doesn't work as intended

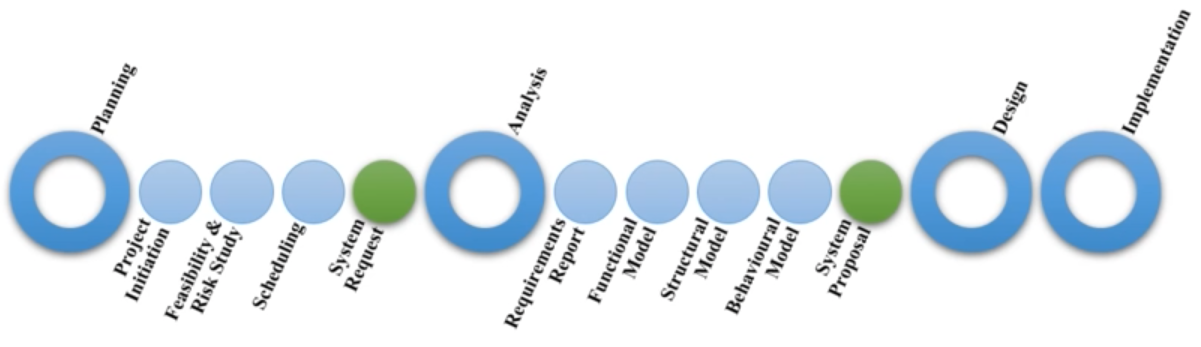

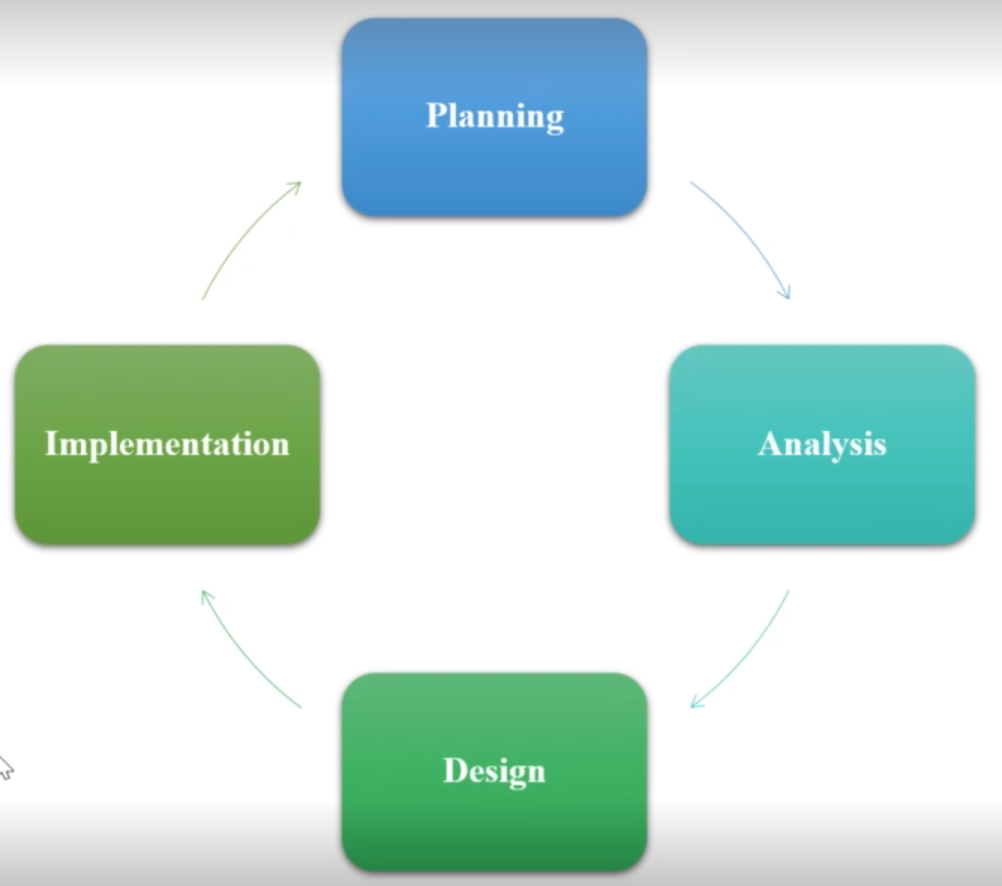

System development life cycle (SDLC)

What is the SDLC process made up of?
  • Each phase is made up of a series of steps
  • Each phase is documented
  • Phases are executed in diffrent ways also knows as a methodology (sequentially...)

Planning

Aim

To understand:

  • Why should we build this?
  • How are we going to make it?
  • What value does it bring?
  • How long will it take to build?
Project plan
  1. Project initialisation
    • Staff may request a certain feature
    • Is it feasible
  1. Project management
    • Create a plan
    • Staff the project
    • Monitor and control the project

Analysis

Aim

To understand

  • Who will use the system?
  • What should it do?
  • Where and when will it be used?
  • Competition? (how is it better or diffrent)
Stratergy
  1. Develop an analysis strategy
    • Create a new system from scratch (to-be system)
    • Modify a old system (as-is system)
  1. Know what the requirements are
    • Find out what you need to know about your concept (send out surveys)
      • Business analysis
      • Get data, and process it
    • Develop a concept
  1. Proposal
    • System should meet all requirements
    • Then is shown to any stake holders for approval
      • How is it better than the competition?
      • Why has nobody else made this before?

Design

Aim
  • How should it be built?
  • Design strategy?

Things to note

  • Basic architecture
  • Database and file specifications
  • Program design

Implementation

Stratergy
  1. Construct the system
    • Build and test it
  1. Install the system
    • Train the users
  1. Maintenance

Stakeholders

What is a stakeholder?

Anyone that holds a intrest in what you are developing

Examples
  • Owners
  • Users
  • Analyst
  • Designers
  • Programmers
  • Vendors

Analyst

What is an analyst role?
  • To analyse the business situation (and improve upon what is there)
  • Identify opportunities
  • Create a information system to act on the opportunities
  • Communicate with all Stakeholders
Skill set
  • Understanding of the technology
  • Understanding of the business model
  • Solve problems
  • Can communicate with a technical and non technical audience
  • Can manage a team
  • Has ethics
